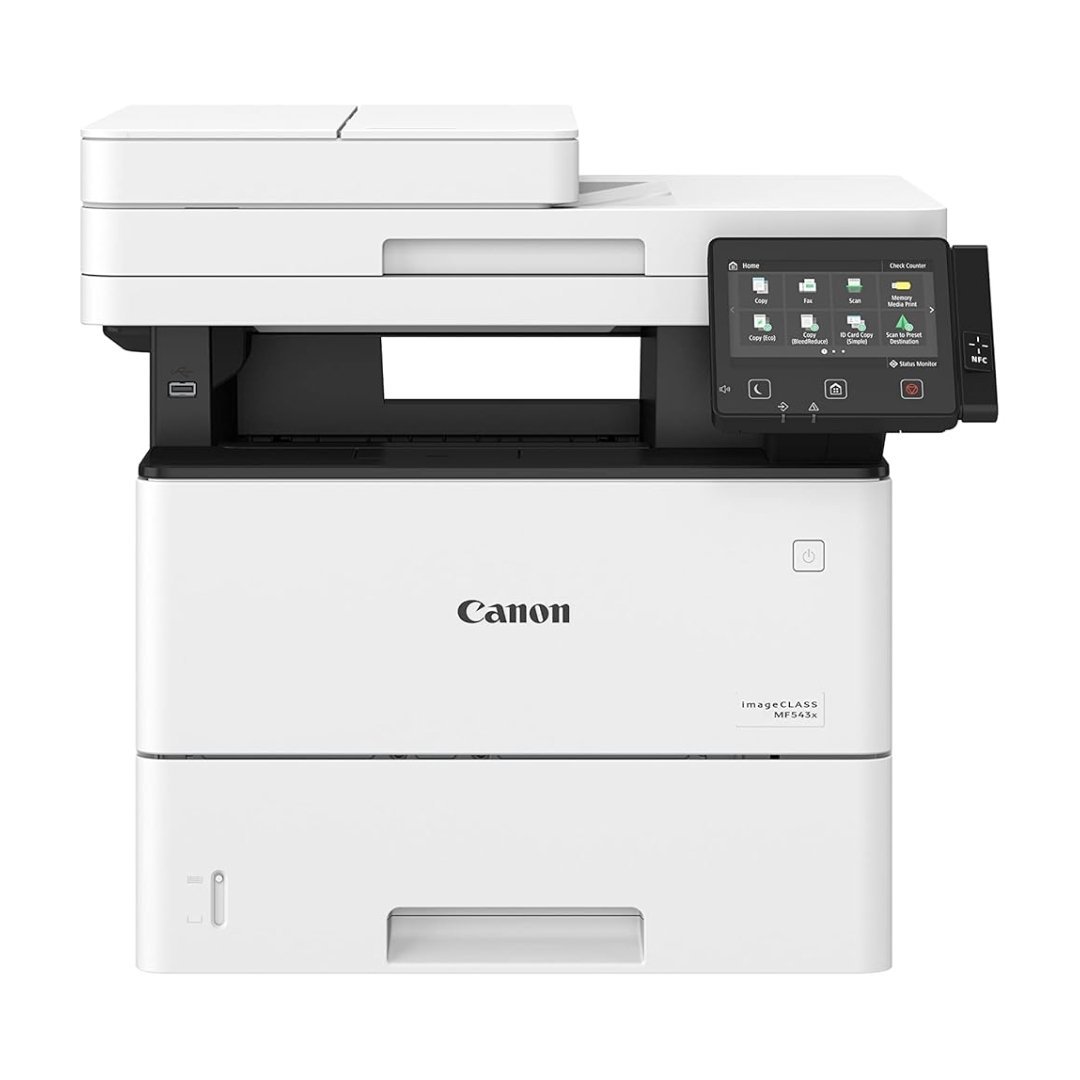

Canon imageCLASS MF543X Multi Function(Print/Scan/Copy/Fax) WiFi Laser Monochrome Printer with FAX

Printing

• Printing Method: Monochrome Laser Beam Printing
• Print Speed:
  • A4: 43 pages/minute (ppm)
  • Letter: 45 ppm
  • 2-Sided: 36 ppm (A4) / 37 ppm (Letter)
• Print Resolution: 600 x 600 dpi
• Print Quality (with Image Refinement Technology): 1,200 × 1,200 dpi (equivalent)
• Warm-Up Time (From Power On): 14 seconds or less
• First Print Out Time (FPOT):
  • A4: Approx. 5.7 seconds
  • Letter: Approx. 5.6 seconds
• Recovery Time (From Sleep Mode): 4 seconds or less
• Print Language: UFR II, PCL 6, Adobe® PostScript® 3™
• Auto Duplex Print: Yes
• Available Paper Sizes for Auto Duplex Print: A4, Letter, Legal, Indian Legal
• Print Margins: 5 mm (Top, Bottom, Left, Right); 10 mm (Envelope)
• Print Features: Poster, Booklet, Watermark, Page Composer, Toner Saver
• Supported File Formats for USB Direct Print: JPEG, TIFF, PDF

Copying

• Copy Speed:
  • A4: 43 ppm
  • Letter: 45 ppm
• Copy Resolution: 600 x 600 dpi
• First Copy Out Time (FCOT):
  • A4: 6.3 seconds
  • Letter: 6.0 seconds
• Maximum Number of Copies: Up to 999 copies
• Reduce/Enlargement: 25 – 400% in 1% increments
• Copy Features: Erase Frame, Collate, N on 1, ID Card Copy, Passport Copy

Scanning

• Scan Resolution:
  • Optical:
    • Platen Glass: Up to 600 x 600 dpi
    • Feeder: Up to 300 x 300 dpi
  • Driver Enhanced: Up to 9,600 x 9,600 dpi
• Scan Type: Colour Contact Image Sensor
• Maximum Scan Size:
  • Platen Glass: 215.9 x 355.6 mm
  • Feeder: 215.9 x 355.6 mm
• Scan Speed:
  • 1-Sided: 38 images/min (mono), 13 images/min (colour)
  • 2-Sided: 70 images/min (mono), 26 images/min (colour)
• Colour Depth: 24-bit
• Pull Scan: Yes (USB and Network)
• Push Scan (Scan to PC) with MF Scan Utility: Yes (USB and Network)
• Scan to USB (via USB Host 2.0): Yes
• Scan to Cloud: MF Scan Utility
• Scan Driver Compatibility: TWAIN, WIA

Send

• SEND Method: SMB, Email, FTP, iFAX Simple
• Colour Mode: Full Colour, Grayscale, Monochrome
• Scan Resolution: 300 x 600 dpi
• File Formats: JPEG, TIFF, PDF, Compact PDF, PDF (OCR)

Fax

• Modem Speed: Up to 33.6 Kbps
• Fax Resolution: Up to 400 x 400 dpi
• Compression Methods: MH, MR, MMR, JBIG
• Memory Capacity: Up to 512 pages
• Favourite Dials (in address book): 19 dials
• Speed Dial (Coded Dials): Up to 281 dials
• Group Dials/Destinations: Maximum 299 dials / Maximum 299 destinations
• Duplex Fax (Transmission): Yes
• Sequential Broadcast: Maximum 310 destinations
• Receive Modes: Fax Only, Manual, Answering, Fax/Tel Auto Switch
• Memory Backup: Permanent fax memory backup (Flash Memory)
• Fax Features: Fax Forwarding, Dual Access, Remote Reception, PC Fax (Transmission only), DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports
• Transmission Time: Approx. 2.6 seconds

Paper Handling

• Auto Document Feeder (ADF): Duplex ADF, 50 sheets (80g/m²)
• Available Paper Sizes for ADF:
  • A4, B5, A5, A6, Letter, Legal, Statement
  • Custom Sizes: Minimum 105 x 128 mm to Maximum 215.9 x 355.6 mm
• Paper Input (based on 80g/m²):
  • Standard Cassette: 550 sheets
  • Multi-Purpose Tray: 100 sheets
  • Optional Paper Feeder: 550 sheets x 3
  • Maximum Paper Input Capacity: 2,300 sheets
• Paper Output: 250 sheets
• Paper Sizes:
  • Cassette: A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal
  • Custom: Minimum 105 x 148 mm to Maximum 216 x 355.6 mm
  • Multi-Purpose Tray: A4, B5, A5, A6, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal
  • Custom: Minimum 76.2 x 127.0 mm to Maximum 216 x 355.6 mm
  • Optional Paper Feeder: Same as above
• Paper Types: Plain, Recycled, Coloured, Heavy, Label, Postcard, Envelope
• Paper Weight:
  • ADF: 50 to 105 g/m²
  • Cassette / Optional Paper Feeder: 60 to 120 g/m²
  • Multi-Purpose Tray: 60 to 199 g/m²

Connectivity & Software

• Standard Interfaces:
  • Wired: USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T
  • Wireless: Wi-Fi 802.11b/g/n (Infrastructure mode, WPS Easy Setup, Direct Connection)
  • Near Field Communication (NFC): Yes (Passive)
• Network Protocol:
  • Print: LPD, RAW, WSD-Print (IPv4, IPv6)
  • Scan: Email, SMB, WSD-Scan (IPv4, IPv6), FTP
• TCP/IP Application Services: Bonjour (mDNS), HTTP, HTTPS, POP before SMTP (IPv4, IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6)
• Management: SNMPv1, SNMPv3 (IPv4, IPv6)
• Network Security:
  • Wired: IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC
  • Wireless: WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
• One-Push Wireless Configuration: Wi-Fi Protected Setup (WPS)
• Other Features: Department ID, Secure Print, Application Library
• Mobile Solutions: Canon PRINT Business, Canon Print Service, Google Cloud Print™, Apple® AirPrint®, Mopria® Print Service
• Address Book: LDAP
• Compatible Operating Systems:
  • Windows®: 10, 8.1, 7, Server 2019, 2016, 2012 R2, 2012, 2008 R2, 2008
  • Mac® OS: X 10.9.5 & up
  • Linux: Yes
• Software Included: Printer driver, Fax driver, Scanner driver, MF Scan Utility, Toner Status

General Specifications

• Device Memory: 1 GB
• LCD Display: WVGA Colour LCD 5.0″ Touch Screen Display
• Dimensions (W x D x H): 494 x 464 x 452 mm
• Weight: 19.0 kg
• Power Consumption:
  • Maximum: 1,420 W
  • Operation (Average): Approx. 590 W
  • Standby (Average): Approx. 13.6 W
  • Sleep (Average): Approx. 0.9 W (USB/Wired/Wireless)
• Noise Levels:
  • Operation: Sound Pressure Level: 54 dB, Sound Power Level: 6.8 B
  • Standby: Sound Pressure Level: 24 dB, Sound Power Level: 4.0 B
• Operating Environment:
  • Temperature: 10 – 30°C
  • Humidity: 20% – 80% RH (no condensation)
• Power Requirements: AC 220-240 V (±10%), 50/60 Hz (±2 Hz)

Toner Cartridges

• Standard Cartridge: 056 (10,000 pages, bundled: 5,100 pages)
• Low Yield Cartridge: 056L (5,100 pages)
• High Yield Cartridge: 056H (21,000 pages)

Monthly Duty Cycle

• Maximum: 150,000 pages

Optional Accessories

• Paper Feeder: Paper Feeder PF-C1 (550 sheets)
• Barcode Printing: Barcode Printing Kit-E1
• Attachment Kit for NT-Ware Mi-Card: Mi-Card Attachment Kit-B1
