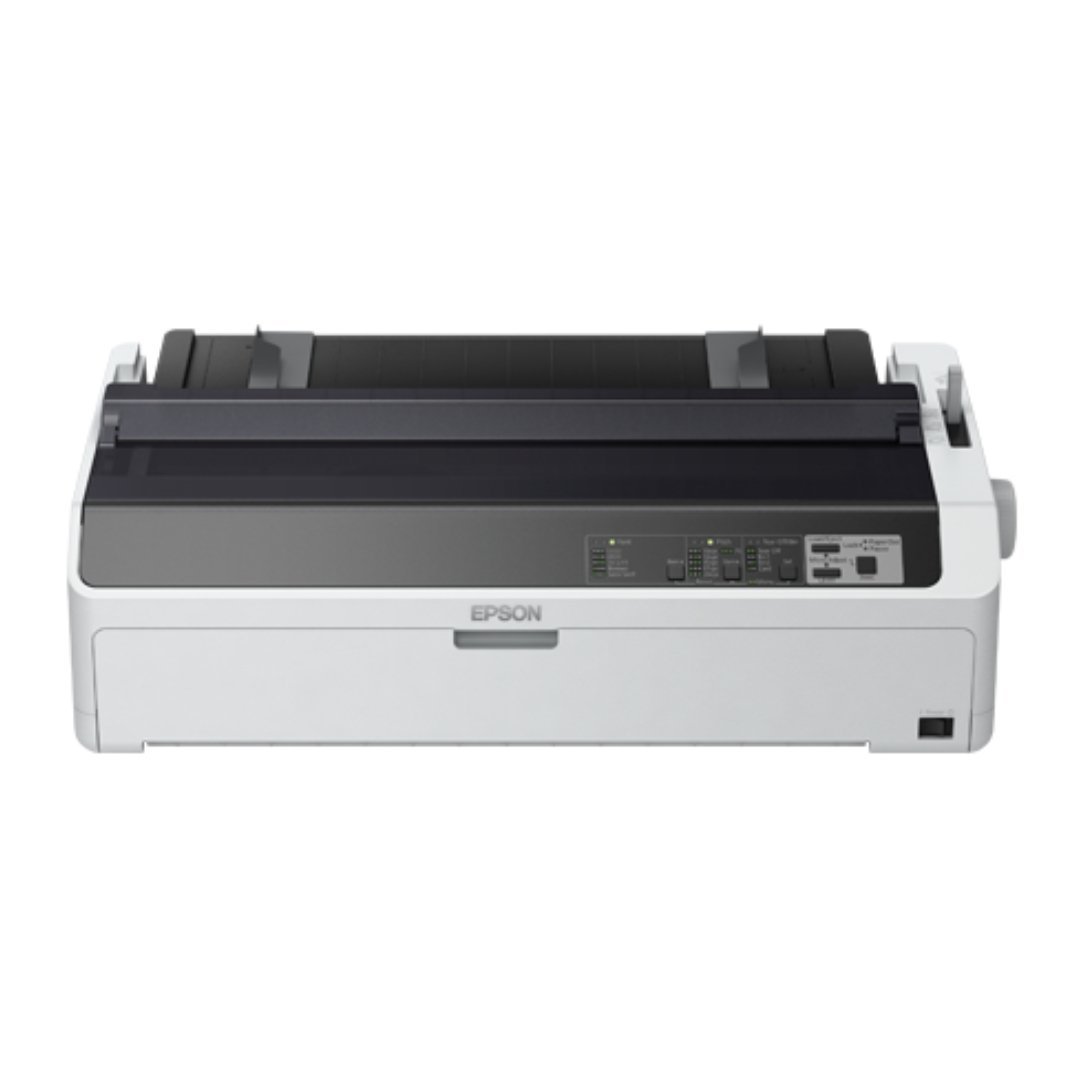

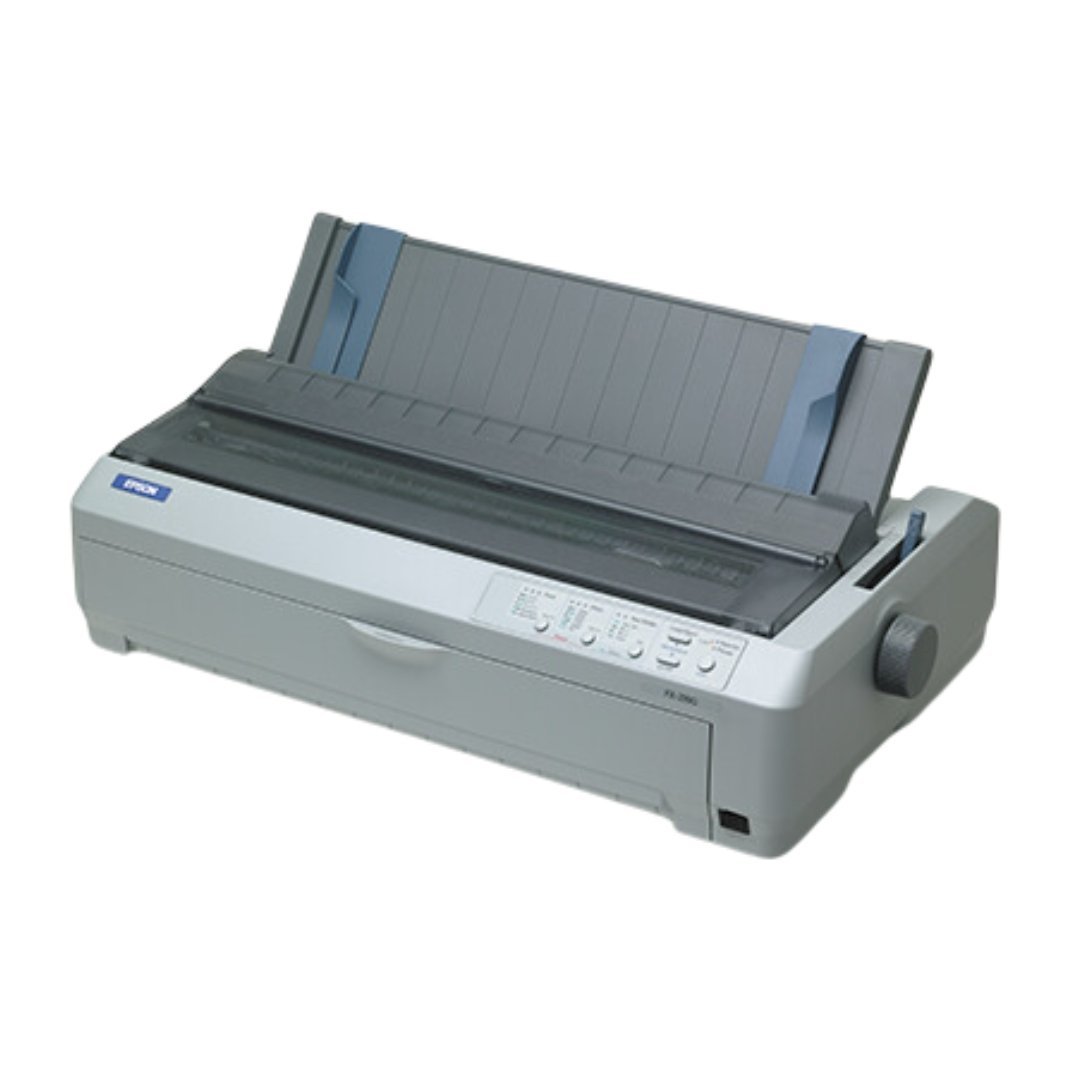

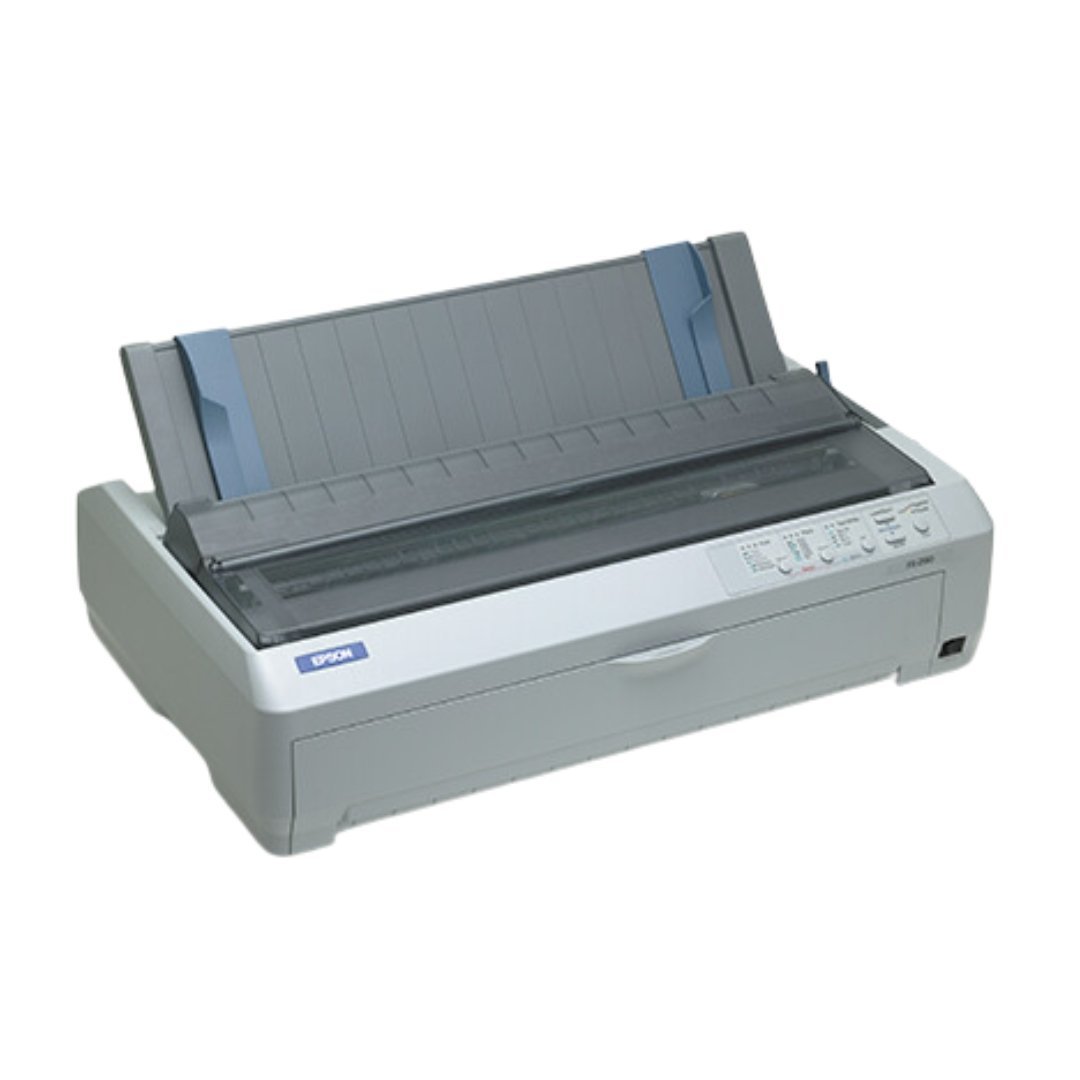

Epson FX-2190IIN Dot Matrix Printer

Printing Technology:

• Print Method: Impact dot matrix
• Number of Pins in Head: 9 pins
• Control Code: ESC/P2, IBM PPDS

Print Characteristics:

• Bitmap Fonts:
  • Epson Draft: 10, 12, 15 cpi
• Scalable Fonts:
  • Epson Roman / Epson Sans Serif
• Barcode:
  • EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

Paper Media:

• Cut Sheet (Single Sheet):
  • Entry (Front / Rear):
    • Length: 100 – 420 mm (3.9 – 16.5”)
    • Width: 100 – 420 mm (3.9 – 16.5”)
    • Thickness: 0.065 – 0.14 mm (0.0025 – 0.0055”)
• Cut Sheet (Multi-part Sheet):
  • Entry (Front / Rear):
    • Length: 100 – 420 mm (3.9 – 16.5”)
    • Width: 100 – 420 mm (3.9 – 16.5”)
    • Thickness: 0.12 – 0.46 mm (0.0047 – 0.018”)
• Continuous Paper (Single Sheet / Multi-part):
  • Copies: Original + 4 copies
  • Entry (Front / Rear / Bottom):
    • Length: 101.6 – 558.8 mm (4.0 – 22.0”)
    • Width: 101.6 – 406.4 mm (4.0 – 16.0”)
    • Thickness: 0.065 – 0.46 mm (0.0025 – 0.018”)
• Envelope (No. 6):
  • Entry: Rear
  • Length: 92 mm (3.6”)
  • Width: 165 mm (6.5”)
  • Thickness: 0.16 – 0.52 mm (0.0063 – 0.0205”)
• Envelope (No. 10):
  • Entry: Rear
  • Length: 105 mm (4.1”)
  • Width: 241 mm (9.5”)
  • Thickness: 0.16 – 0.52 mm (0.0063 – 0.0205”)
• Label (Base Sheet):
  • Entry: Bottom
  • Length: 101.6 – 558.8 mm (4.0 – 22.0”)
  • Width: 101.6 – 406.4 mm (4.0 – 16.0”)
  • Thickness: 0.16 – 0.19 mm (0.0063 – 0.0075”)
• Card:
  • Entry (Front / Rear):
    • Length: 100 – 148 mm (3.9 – 5.8”)
    • Width: 100 – 148 mm (3.9 – 5.8”)
    • Thickness: 0.22 mm (0.0087”)
• Roll Paper:
  • Entry: Rear
  • Diameter: 127 mm (5”)
  • Width: 216 mm (8.5”)
  • Thickness: 0.07 – 0.09 mm (0.0028 – 0.035”)

Line Spacing:

• 4.23 mm (1/6”) or programmable in increments of 0.059 mm (1/432”)

Consumables:

• Ribbon Cartridge Black:
  • Ribbon Life: Approx. 12 million characters (Part No. C13S015327)

Environmental Conditions (Operating):

• Temperature: 5 – 35°C (41 – 95°F)
• Humidity: 10 – 80% RH
• Acoustic Noise: 55 dB

Input Data Buffer:

• 128 KB
