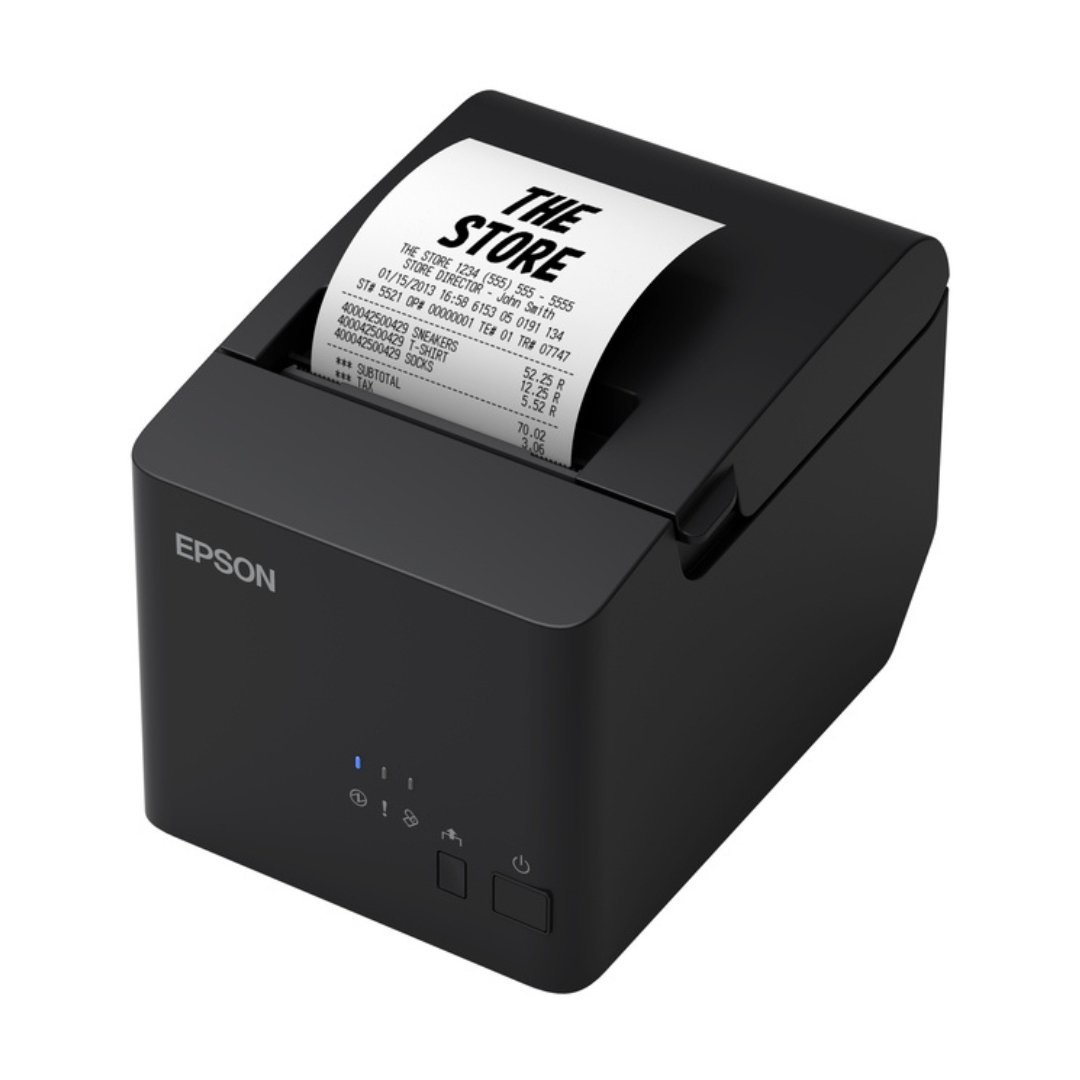

Epson TM-T82X (USB + Serial) POS Monochrome Printer

Power Specifications:

• Power Supply: Built-in power supply
• Power Consumption:
  • Operating: Approx. 27.8 W
  • Standby: Approx. 0.96 W
• Supply Voltage: AC 100 to 230V / 50 to 60 Hz

External Option:

• External Buzzer: Optional external buzzer unit

Print Font:

• Fonts Available:
  • 9 × 17 / 12 × 24, Hanji Font (24 x 24), Thai Font (9 x 24 / 12 x 24)
• Characters Per Inch (CPI):
  • 22.6 CPI / 16.9 CPI, Hanji Font: 7.8 CPI, Thai Font: 22.6 CPI / 16.9 CPI
• Character Size (W x H):
  • 0.88 × 2.13 mm / 1.25 × 3 mm, Hanji Font: 3 x 3 mm, Thai Font: 0.88 x 3 mm / 1.25 x 3 mm

Character Set:

• Alphanumeric: 95 characters
• International: 18 sets
• Hanzi (Simplified Chinese – GB18030-2000): 28,553 characters
• Barcodes Supported:
  • UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN), CODE39, ITF, CODABAR (NW-7), CODE93, CODE128, GS1-128, GS1 DataBar
• 2D Codes Supported:
  • PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology

Data Buffer:

• Buffer Size: 4 KB or 45 bytes

Dimensions:

• Overall Dimensions (D x W x H): 192 x 149 x 140 mm

Printing Method:

• Method: Thermal Line Printing

Standard Accessories:

• Included Items:
  • Roll paper (for initial setup)
  • Setup guide
  • USB cable (for USB + Serial model)

Mass:

• Weight: Approx. 1.5 kg

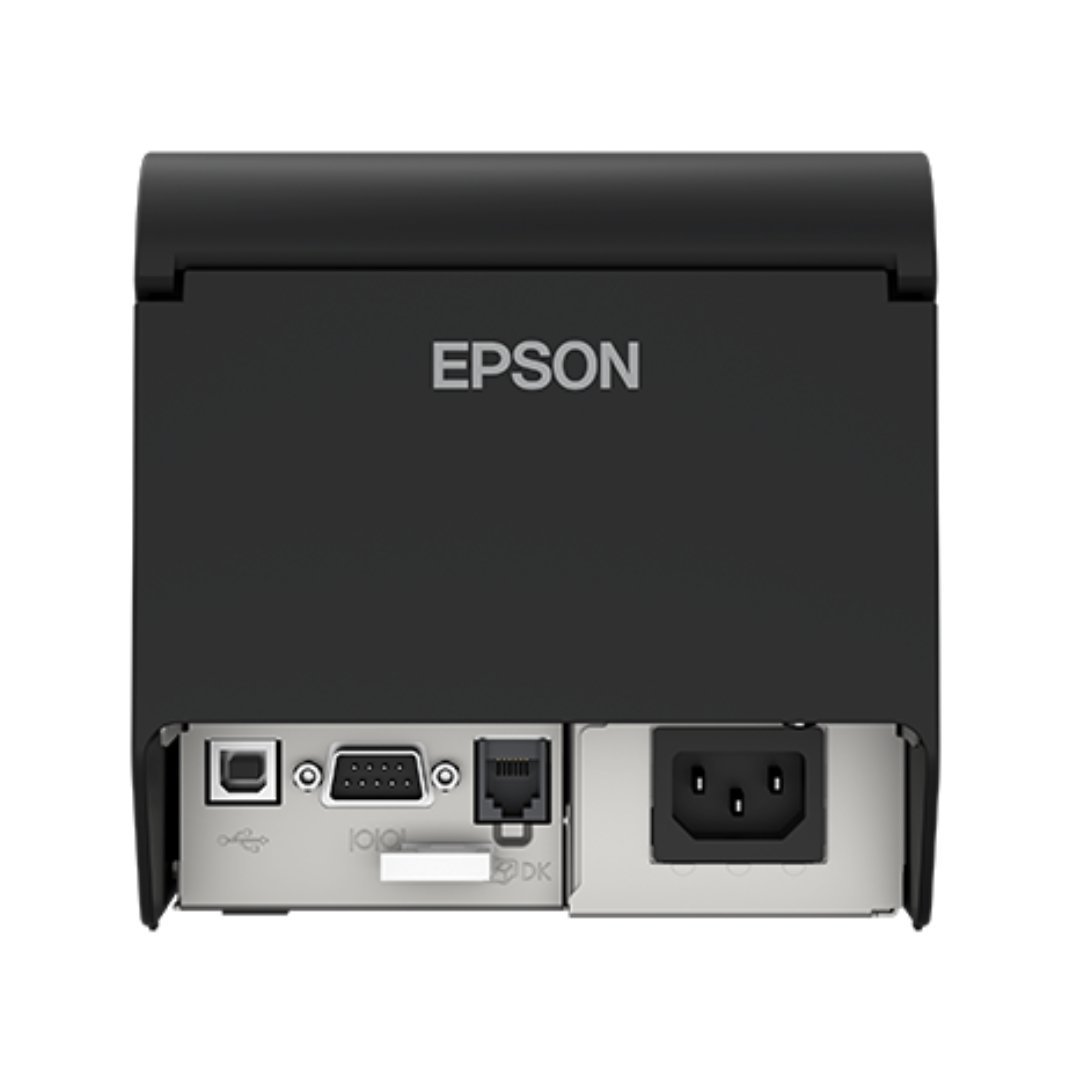

Interfaces:

• USB: Yes
• Serial: Yes (9-pin built-in)

Other Features:

• Built-in Functions:
  • Automatic Paper Reduction
  • Automatic paper cut with logo printing
