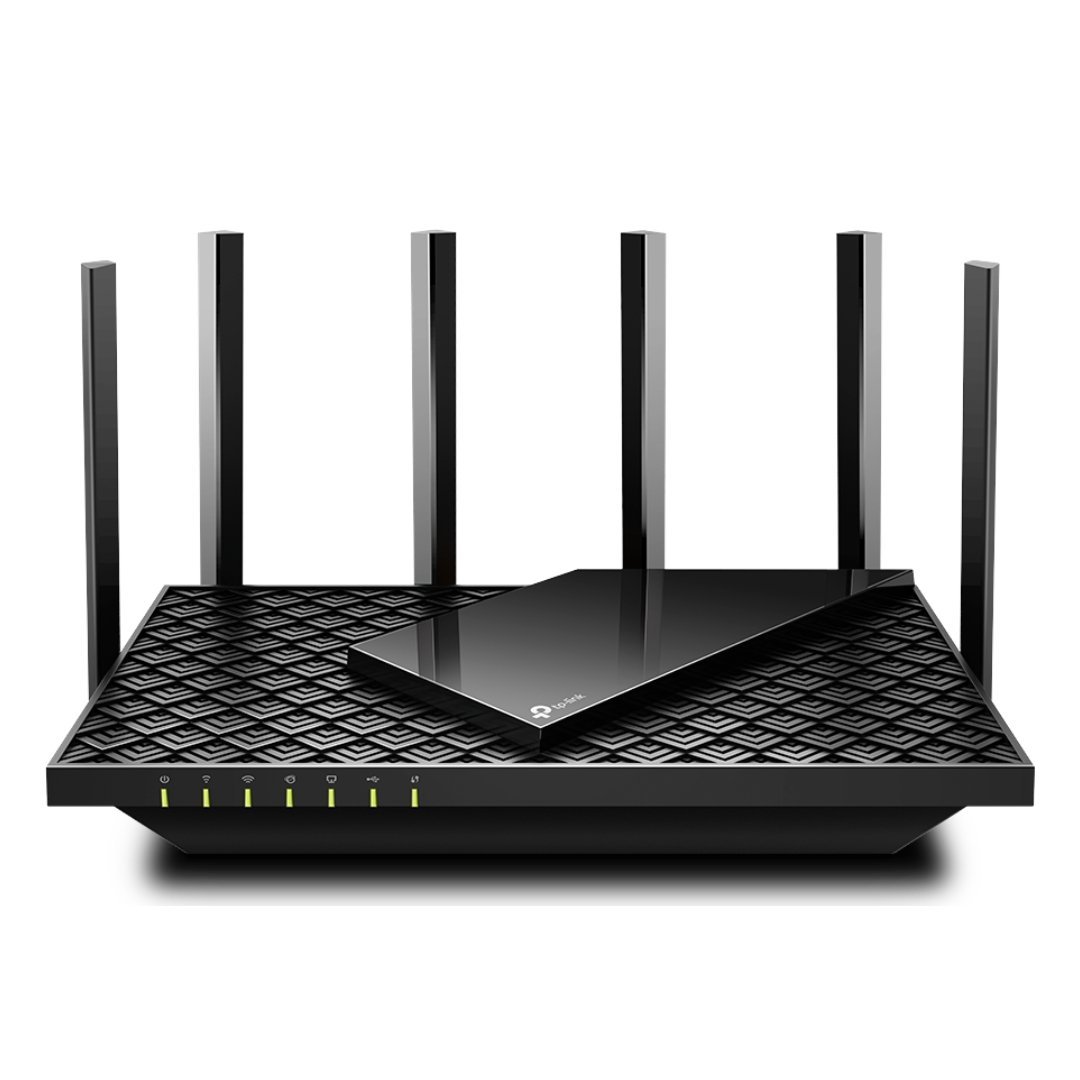

TP-Link Archer AX72 Pro AX5400 Dual-Band Gigabit Wi-Fi 6 Router

Wi-Fi Speeds & Bands:

• 5 GHz: 4804 Mbps (802.11ax, HE160)
• 2.4 GHz: 574 Mbps (802.11ax)

Wi-Fi Range & Coverage:

• Coverage Area: Ideal for 3-bedroom houses
• Antennas: 6× Fixed High-Performance Antennas that provide coverage over a large area, ensuring reliable signals in various directions

Wi-Fi Capacity & Technology:

• Dual-Band: Allocates devices across the 2.4 GHz and 5 GHz bands to ensure optimal performance
• 4×4 MU-MIMO: Allows simultaneous communication with multiple MU-MIMO clients for enhanced efficiency
• OFDMA: Optimizes communication with multiple Wi-Fi 6 clients
• Airtime Fairness: Improves network efficiency by limiting the excessive occupation of bandwidth by a single device
• DFS: Access to extra Wi-Fi bands to reduce congestion
• 6 Streams: Provides ample bandwidth for multiple devices simultaneously

Security Features:

• HomeShield Security:
  • Real-Time IoT Protection
  • Malicious Site Blocker
  • Intrusion Prevention System
  • DDoS Attack Prevention
  • Home Network Scanner
• Wi-Fi Encryption: WPA, WPA2, WPA3, and WPA/WPA2-Enterprise (802.1x)
• Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
• VPN Support: OpenVPN, PPTP, and L2TP server and client options

Hardware Specifications:

• Processor: 1 GHz Dual-Core CPU
• Ethernet Ports:
  • 1× 2.5 Gigabit WAN/LAN Port
  • 1× Gigabit WAN/LAN Port
  • 3× Gigabit LAN Ports

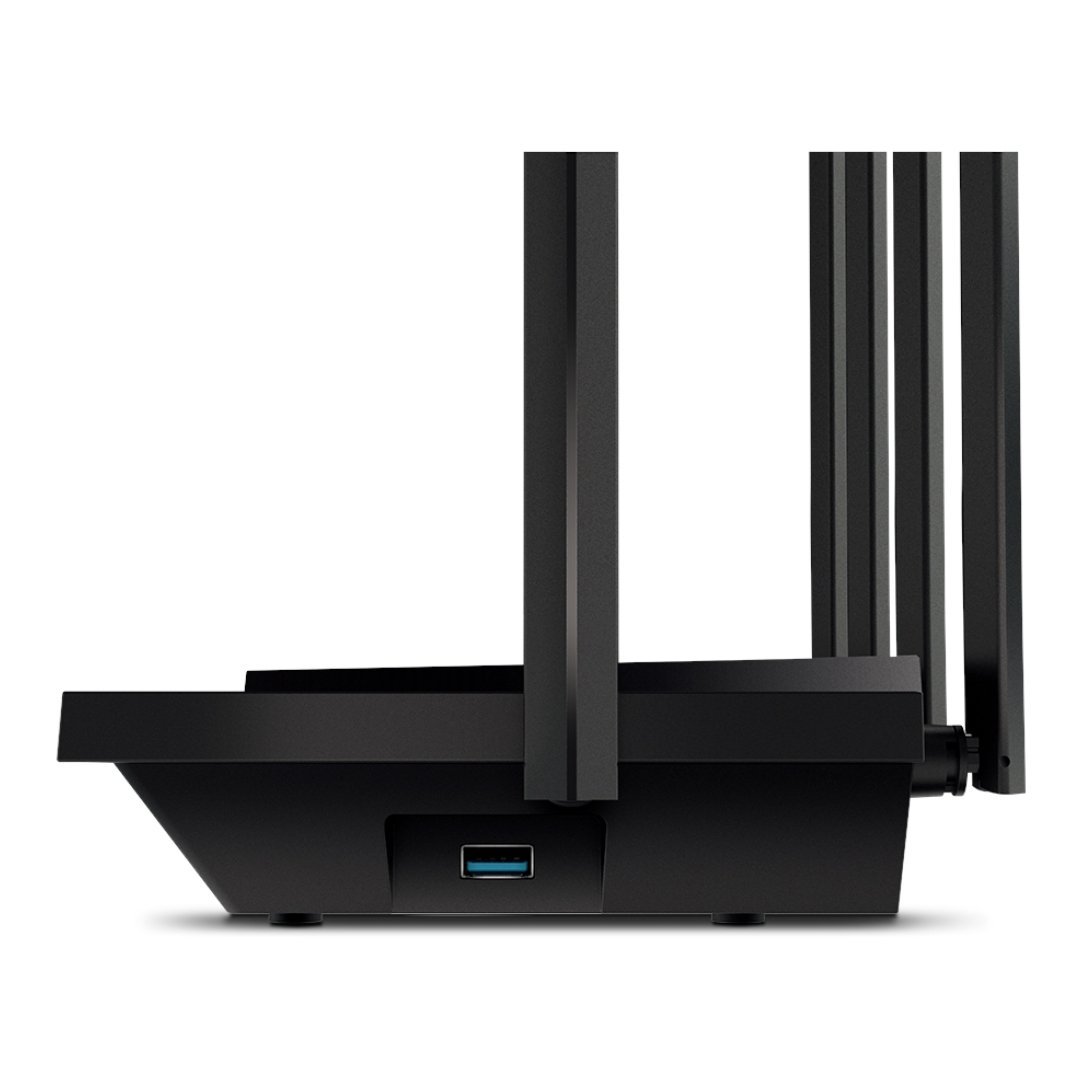

• USB Ports: 1× USB 3.0 Port for file sharing, media server, etc.
• Power: 12 V / 2.5 A

Software & Management:

• OneMesh™: Supports TP-Link OneMesh™ technology for extending Wi-Fi coverage across your home without replacing existing devices
• Parental Controls: Custom profiles, content filtering, family time, bedtime, and more to manage children’s internet usage
• Quality of Service (QoS): Prioritize bandwidth for specific devices or applications
• Cloud Services: Includes auto firmware upgrades, TP-Link ID, DDNS support
• NAT Forwarding: Includes port forwarding, port triggering, DMZ, and UPnP for advanced network configurations
• Management Options: Managed via the Tether App or the web interface

Test Data:

• Wi-Fi Transmission Power:
  • CE:
    • <20dBm (2.4GHz)
    • <23dBm (5.15GHz–5.35GHz)
    • <30dBm (5.47GHz–5.725GHz)
  • FCC:
    • <24dBm (5.25GHz–5.35GHz & 5.47GHz–5.725GHz)
    • <30dBm (2.4GHz & 5.15GHz–5.25GHz & 5.725GHz–5.825GHz)
• Wi-Fi Reception Sensitivity:
  • 2.4GHz: -94.5dBm (11ac VHT20 MCS0) to -64.5dBm (11ax HE20 MCS11)
  • 5GHz: -97dBm (11ac VHT20 MCS0) to -55dBm (11ax HE160 MCS11)

Physical Specifications:

• Dimensions: 10.7 × 5.8 × 1.9 inches (272.5 × 147.2 × 49.2 mm)

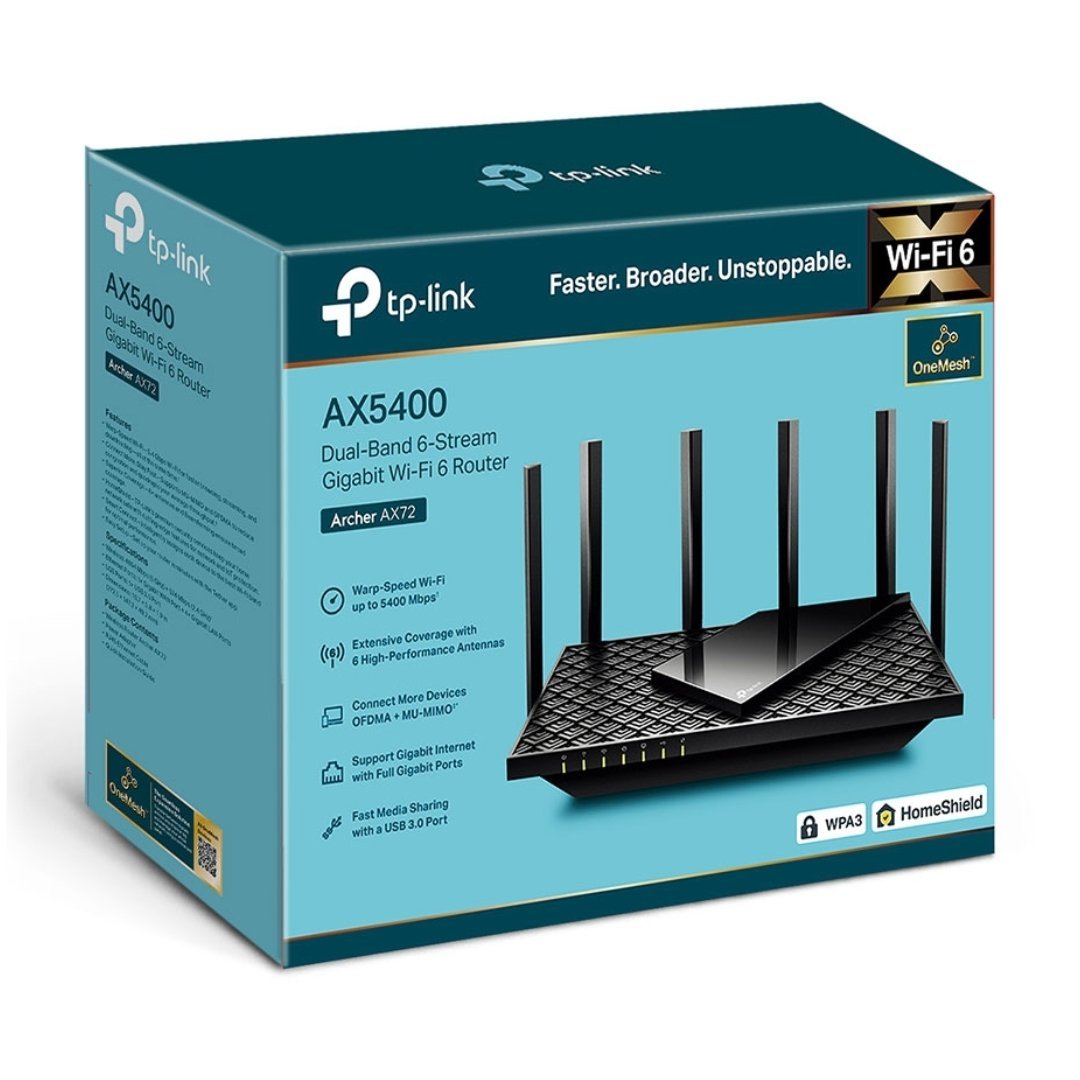

• Package Contents:
  • Archer AX72 Wi-Fi Router
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide

System Requirements:

• Compatible Browsers: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+
• Modem Required: Cable or DSL modem (if needed) and an internet service provider subscription

Certifications:

• FCC, CE, RoHS certified
