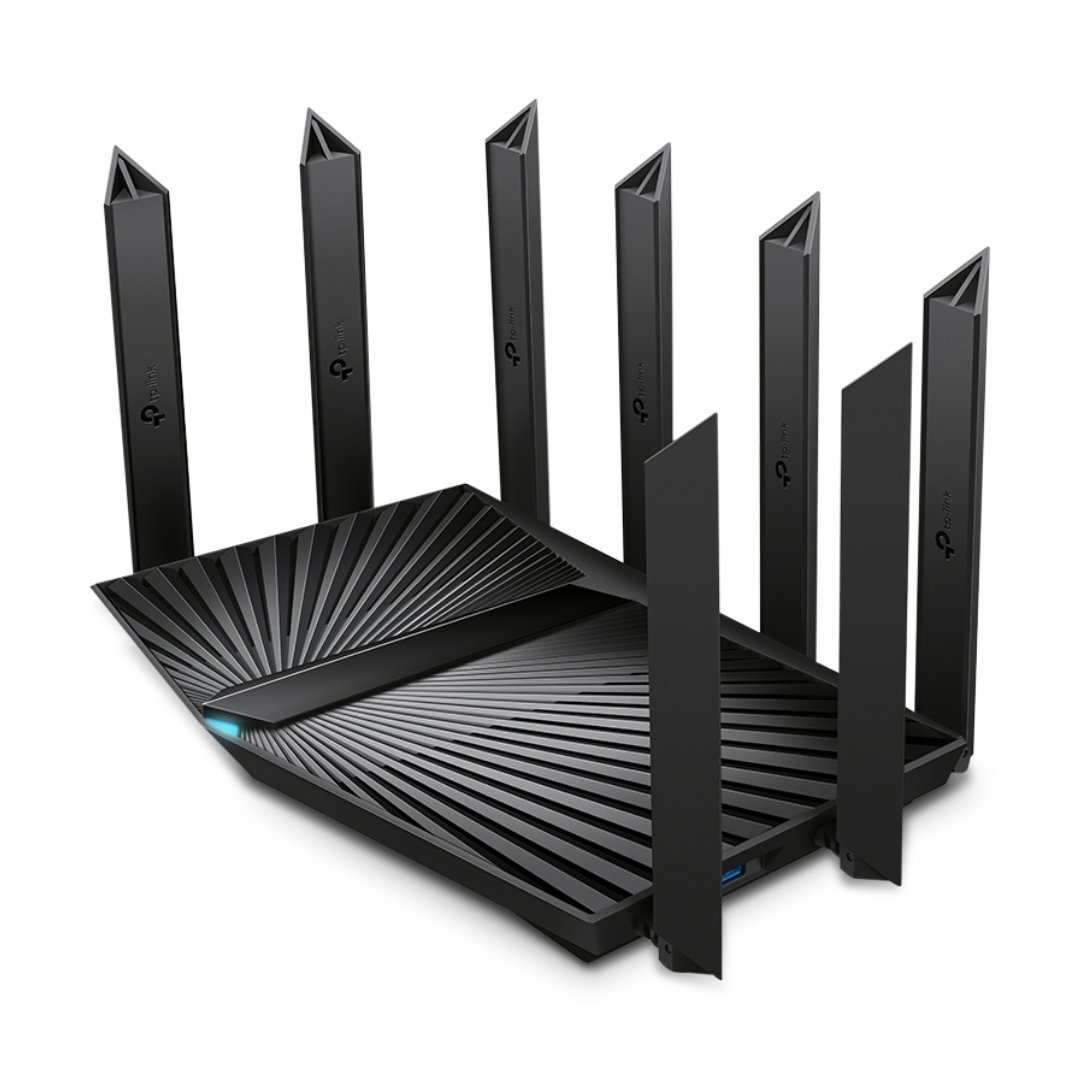

TP-Link Archer AX90 AX6600 Tri-Band Gigabit Wi-Fi 6 Router

Wi-Fi Standards & Speeds:

• Wi-Fi 6 (802.11ax) for enhanced performance and capacity.
  • 5 GHz (HE160): Up to 4804 Mbps (802.11ax)
  • 5 GHz: Up to 1201 Mbps (802.11ax)
  • 2.4 GHz: Up to 574 Mbps (802.11ax)

Wi-Fi Range:

• Range: Ideal for 4-bedroom houses.
• 8× Fixed High-Performance Antennas: A combination of antennas boosts the signal strength in multiple directions, covering large areas.
• Beamforming: Focuses the wireless signal on clients to expand the Wi-Fi range.
• High-Power FEM: Improves transmission power to increase coverage.
• 4T4R: Strengthens fault tolerance in transmission by utilizing multiple streams in the same band.

Wi-Fi Capacity & Features:

• Tri-Band: Offers a 5 GHz-1, 5 GHz-2, and 2.4 GHz band for optimal performance and device allocation.
• 4×4 MU-MIMO: Allows simultaneous communication with multiple MU-MIMO clients.
• OFDMA: Efficiently communicates with multiple Wi-Fi 6 clients at once.
• Airtime Fairness: Enhances network efficiency by limiting devices from monopolizing the airwaves.
• DFS (Dynamic Frequency Selection): Access to an additional band for reduced congestion and more channels.

Security:

• Network Security:
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
• HomeShield Security:
  • Real-Time IoT Protection: Guards IoT devices from threats.
  • Malicious Site Blocker: Prevents access to harmful websites.
  • Intrusion Prevention System: Detects and prevents unauthorized network access.
  • DDoS Attack Prevention: Safeguards against DDoS attacks.
  • Home Network Scanner: Scans devices on the network for vulnerabilities.
• Wi-Fi Encryption:
  • Supports WPA, WPA2, WPA3, and WPA/WPA2-Enterprise (802.1x) for strong security.
• VPN Server: Supports OpenVPN, PPTP, and L2TP VPN clients.

Hardware:

• Processor: 1.5 GHz Quad-Core CPU for efficient processing power.
• Ethernet Ports:
  • 1× 2.5 Gbps WAN/LAN Port for high-speed wired connections.
  • 1× 1 Gbps WAN/LAN Port for additional high-speed connectivity.
  • 3× 1 Gbps LAN Ports for other wired devices.
• USB Support:
  • 1× USB 3.0 Port
  • 1× USB 2.0 Port for connecting external storage or devices.
• Supported Partition Formats:
  • NTFS, exFAT, HFS+, FAT32
• Functions:
  • Apple Time Machine support
  • FTP Server
  • Media Server
  • Samba Server
• Buttons:
  • Wi-Fi On/Off Button
  • Power On/Off Button
  • LED On/Off Button
  • WPS Button for easy pairing with devices.
  • Reset Button to restore factory settings.
• Power Input: 12 V ⎓ 3.3 A.

Software Features:

• Protocols: Supports both IPv4 and IPv6 for future-proofing.
• HomeShield: Offers advanced protection features.
• OneMesh™: Extend your network coverage by connecting with TP-Link OneMesh™ products to create a more flexible and seamless Wi-Fi network.
• Parental Controls:
  • Custom Profiles
  • Professional Content Filter Library
  • Family Time, Bedtime, Off Time
  • Time Rewards, Family Online Time Ranking
  • Pause the Internet, Weekly and Monthly Reports

Networking Features:

• WAN Types: Supports Dynamic IP, Static IP, PPPoE, PPTP, and L2TP connections.
• Quality of Service (QoS): Allows prioritization of specific devices or services for optimal bandwidth management.
• Cloud Services:
  • Auto Firmware Upgrade ensures the router stays up to date.
  • TP-Link ID for easy cloud management.
• NAT Forwarding:
  • Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server.
• IPTV:
  • IGMP Proxy, IGMP Snooping, VLAN Tagging for seamless IPTV setup.

Management:

• TP-Link Tether App for easy setup and management.
• Web Interface for advanced configurations.

System Requirements:

• Browser: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+.
• Operating Systems: Compatible with Windows, macOS, Linux, and others.
• Subscription: Requires an internet service provider for internet access.

Certifications:

• FCC, CE, RoHS certified for safety and environmental standards.

Environmental:

• Operating Temperature: 0℃~40℃ (32℉~104℉).
• Storage Temperature: -40℃~70℃ (-40℉~158℉).
• Operating Humidity: 10%~90% non-condensing.
• Storage Humidity: 5%~90% non-condensing.

Wi-Fi Transmission Power & Sensitivity:

• Transmission Power:
  • CE:
    • <20dBm (2.4 GHz)
    • <23dBm (5.15 GHz–5.35 GHz)
    • <30dBm (5.47 GHz–5.725 GHz)
  • FCC:
    • <24dBm (5.47 GHz–5.725 GHz)
    • <30dBm (2.4 GHz & 5.15 GHz–5.25 GHz & 5.725 GHz–5.825 GHz)
• Reception Sensitivity:
  • 2.4 GHz:
    • 11ax HE20 MCS11: -64dBm
    • 11ax HE40 MCS11: -62dBm
  • 5 GHz-1:
    • 11ax HE20 MCS11: -61dBm
    • 11ax HE40 MCS11: -58dBm
    • 11ax HE80 MCS11: -55dBm
  • 5 GHz-2:
    • 11ax HE160 MCS11: -53dBm

Physical Dimensions:

• Dimensions: 12.2 × 8.1 × 6.8 inches (311 × 207 × 174 mm)

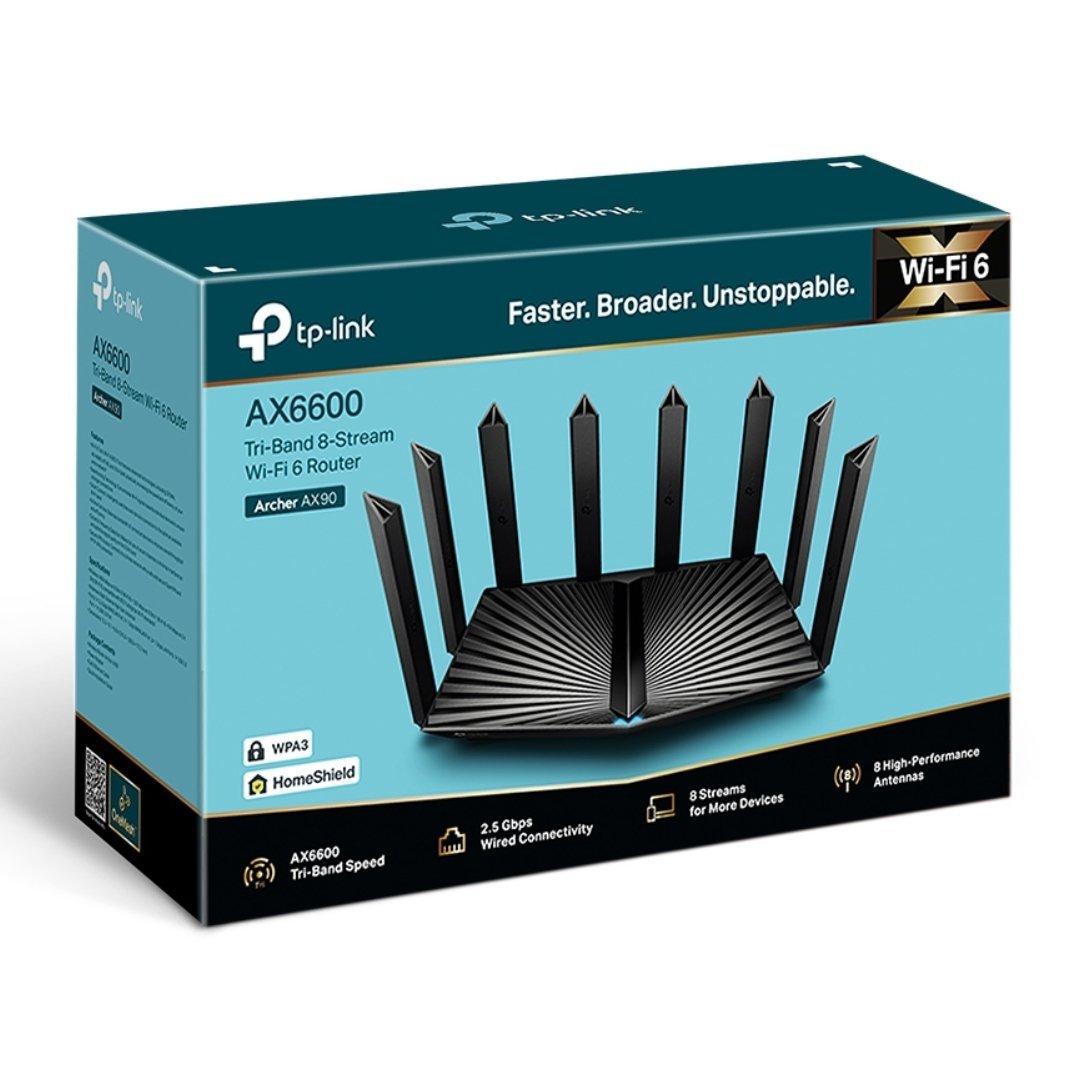

• Package Contents:
  • Archer AX90 Wi-Fi Router
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
