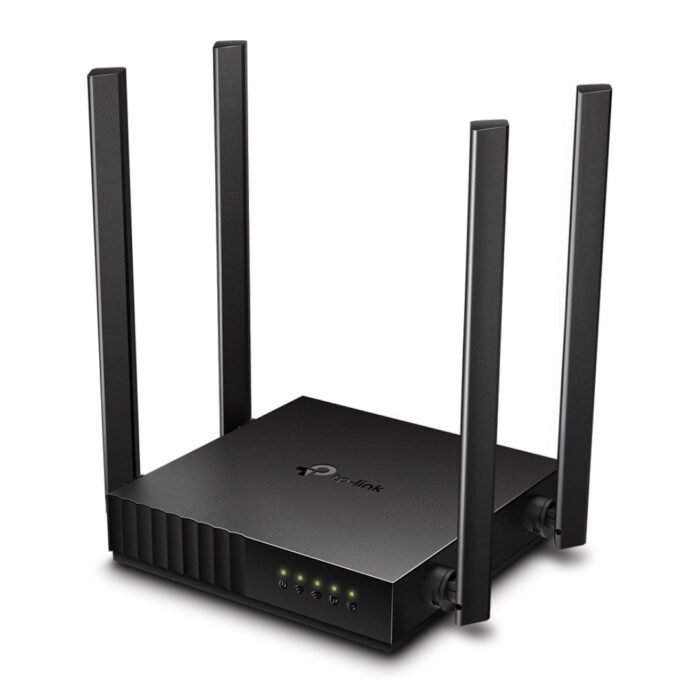

TP-Link Archer C54 AC1200 Dual Band Wi-Fi Router

Physical Specifications:

• Ethernet Ports:

  • 1× 10/100 Mbps WAN Port: For connecting to the internet.
  • 4× 10/100 Mbps LAN Ports: For connecting wired devices such as computers or printers.

• External Power Supply:

  • 9V ⎓ 0.85A: Required to power the router.

• Dimensions:

  • 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)

• Antennas:

  • 4× Fixed Antennas: Designed to enhance signal coverage in multiple directions for better performance in large areas.

Wireless Features:

• Wireless Standards:

  • IEEE 802.11ac/n/a (5 GHz)
  • IEEE 802.11n/b/g (2.4 GHz)

• Wi-Fi Speeds:

  • 5 GHz: Up to 867 Mbps (802.11ac)
  • 2.4 GHz: Up to 300 Mbps (802.11n)

• Wi-Fi Range:

  • Suitable for 3-bedroom houses.

• Transmit Power:

  • CE:
    • <20 dBm (2.4 GHz)
    • <23 dBm (5 GHz)
  • FCC:
    • <30 dBm (2.4 GHz & 5 GHz)

• Wireless Functions:

  • Beamforming: Focuses the wireless signal strength toward devices to improve range and performance.
  • Wi-Fi Scheduling: You can schedule the Wi-Fi to be on or off during specific times.
  • WDS Bridge: Extend the network range by connecting to other compatible devices.

• Wi-Fi Capacity:

  • Dual-Band: Offers both 2.4 GHz and 5 GHz bands for better distribution of traffic and improved performance.

• MU-MIMO:

  • Supports Multiple User, Multiple Input, Multiple Output (MU-MIMO) technology, which enables simultaneous communication with multiple devices for efficient bandwidth usage.

Security:

• Network Security:

  • SPI Firewall, Access Control, IP & MAC Binding, and Application Layer Gateway to protect the network from external threats.

• Guest Network:

  • 1× 5 GHz Guest Network and 1× 2.4 GHz Guest Network: Create a separate, secure network for guests to access the internet.

• Wi-Fi Encryption:

  • Supports WEP, WPA, WPA2, and WPA3 encryption methods, as well as WPA/WPA2-Enterprise for enhanced security.

Software Features:

• Protocols:

  • Supports both IPv4 and IPv6.

• Parental Controls:

  • URL Filtering and Time Controls to help manage access and restrict certain websites or internet usage times for children.

• WAN Types:

  • Dynamic IP, Static IP, PPPoE, PPTP, and L2TP support for various internet connection types.

• Quality of Service (QoS):

  • QoS by Device: Allows prioritization of bandwidth for specific devices or applications for smoother performance.

• NAT Forwarding:

  • Includes features like Port Forwarding, Port Triggering, DMZ, and UPnP for better control over network traffic.

• IPTV:

  • Supports IGMP Proxy, IGMP Snooping, Bridge, and Tag VLAN for optimized IPTV streaming.

• DHCP:

  • Address Reservation, DHCP Client List, and DHCP Server management for controlling IP addresses on your network.

• DDNS:

  • Supports NO-IP and DynDNS for remote access.

• Management:

  • You can manage the router using the Tether App or the web interface.

Other Features:

• System Requirements:

  • Microsoft Windows (98SE, NT, 2000, XP, Vista™, 7/8/10), MAC OS, NetWare, UNIX, or Linux.
  • Compatible with Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, and Safari 4.0+ browsers.

• Certifications:

  • FCC, CE, RoHS certified for safety and environmental standards.

• Environmental Conditions:

  • Operating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)
  • Storage Temperature: -40℃ ~ 60℃ (-40℉ ~ 140℉)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing

Package Contents:

• Wi-Fi Router Archer C54
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
