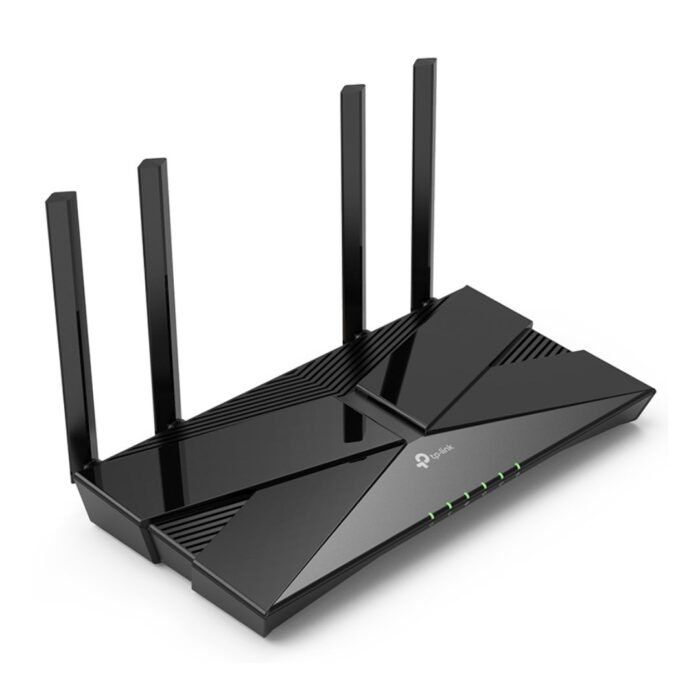

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router

Wi-Fi Standards & Speeds:

• Wi-Fi 6 (802.11ax) for better speeds, efficiency, and capacity.
  • 5 GHz: Up to 1201 Mbps (802.11ax)
  • 2.4 GHz: Up to 574 Mbps (802.11ax)

Wi-Fi Range:

• Suitable for 2-3 bedroom houses.
• 4× Fixed High-Performance Antennas for optimal signal coverage.
• Beamforming: Focuses wireless signal strength towards client devices, improving the range and stability of the network.

Wi-Fi Capacity & Features:

• Dual-Band: Supports both 2.4 GHz and 5 GHz bands, offering flexibility and better performance.
• Airtime Fairness: Ensures devices share the network more equally, improving overall efficiency and preventing network congestion.
• 4 Streams: Maximizes bandwidth by allowing more devices to connect without compromising performance.

Security:

• Network Security:
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
• Wi-Fi Encryption: Supports WPA, WPA2, WPA3, and WPA/WPA2-Enterprise for secure connections.
• Guest Network:
  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network to keep guests isolated from your primary network.
• VPN Support: Includes OpenVPN and PPTP for secure remote access.

Hardware Specifications:

• Processor: Dual-Core CPU for efficient performance.

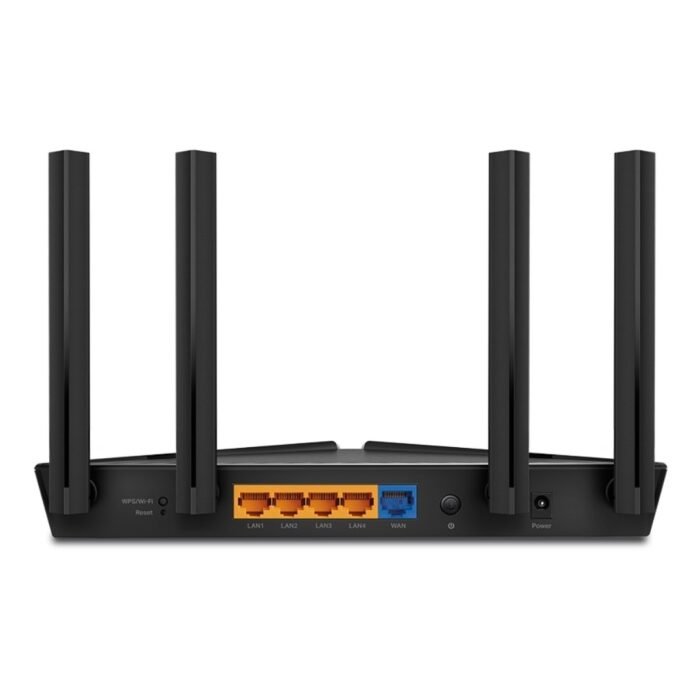

• Ethernet Ports:
  • 1× Gigabit WAN Port
  • 4× Gigabit LAN Ports for fast wired connections.
• Buttons:
  • Wi-Fi/WPS Button for easy device connection.
  • Power On/Off Button.
  • Reset Button.
• Power Input: 12 V ⎓ 1.5 A.

Software Features:

• OneMesh™: Create a flexible and seamless mesh network with compatible TP-Link OneMesh™ products for extended coverage.
• EasyMesh: Build a mesh network with EasyMesh-compatible devices, eliminating Wi-Fi dead zones, providing fast and stable connections.
• Parental Controls:
  • URL Filtering for blocking inappropriate sites.
  • Time Controls to limit internet access.
• Quality of Service (QoS): Prioritize specific devices or applications to ensure smoother performance for critical tasks.
• Cloud Service:
  • OTA Firmware Upgrade: Automatic firmware updates for improved functionality and security.
  • TP-Link ID and DDNS support for remote management.

Networking Features:

• WAN Types: Supports multiple connection types such as Dynamic IP, Static IP, PPPoE, PPTP, and L2TP.
• NAT Forwarding:
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP for easy setup of services like gaming or IP cameras.
• IPTV Support: Includes IGMP Proxy, IGMP Snooping, and VLAN Tagging for optimized IPTV setup.

Management:

• Managed through the Tether App or via the web interface, allowing easy setup and control of the network.

System Requirements:

• Browsers: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+.
• Cable or DSL Modem (if required).
• Subscription with an internet service provider for internet access.

Certifications:

• FCC, CE, RoHS for compliance with environmental and safety standards.

Physical Dimensions:

• Dimensions: 10.2 × 5.3 × 1.5 inches (260.2 × 135.0 × 38.6 mm)
• Package Contents:
  • Archer AX23 Wi-Fi Router
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide

Wi-Fi Transmission Power & Sensitivity:

• Wi-Fi Transmission Power:
  • CE:
    • <20dBm (2.4GHz)
    • <23dBm (5.15GHz–5.25GHz)
  • FCC:
    • <30dBm (2.4GHz & 5.15GHz–5.825GHz)
• Wi-Fi Reception Sensitivity:
  • 5GHz:
    • 11ac VHT20 MCS0: -95dBm
    • 11ax HE20 MCS0: -95dBm
    • 11ax HE160 MCS0: -89dBm
  • 2.4GHz:
    • 11ac VHT20 MCS0: -95dBm
    • 11ax HE20 MCS0: -95dBm
