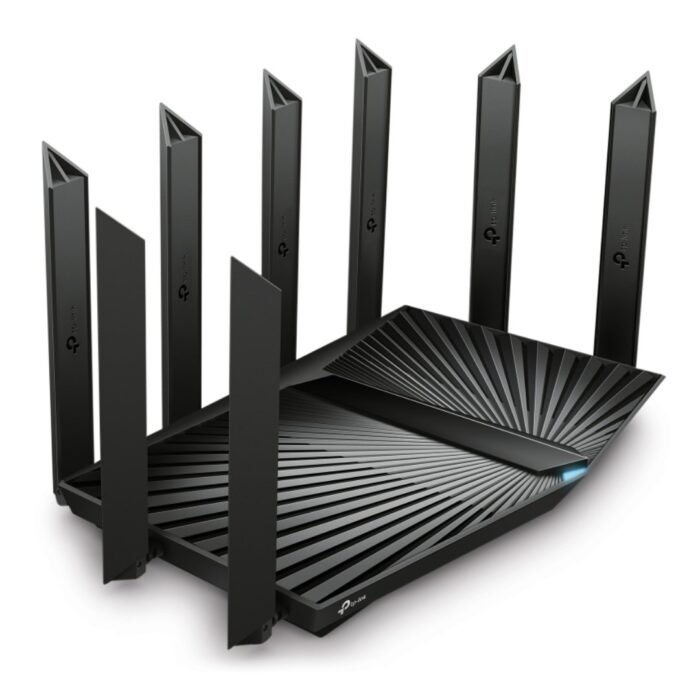

TP-Link Archer AX95 AX7800 Tri-Band 8-Stream Wi-Fi 6 Router

Wi-Fi Speeds & Bands:

• 5 GHz-1: 4804 Mbps (802.11ax, HE160)
• 5 GHz-2: 2402 Mbps (802.11ax)
• 2.4 GHz: 574 Mbps (802.11ax)

Wi-Fi Range & Coverage:

• Coverage Area: Ideal for 4-bedroom houses
• Antennas: 8× Fixed High-Performance Antennas, boosting coverage in all directions

Wi-Fi Capacity & Technology:

• Tri-Band: Allocates devices across three bands (5 GHz-1, 5 GHz-2, and 2.4 GHz) for optimized performance
• 4T4R (Four Transmit, Four Receive): Multiple streams in the same band for enhanced fault tolerance
• 4×4 MU-MIMO: Allows simultaneous communication with multiple MU-MIMO clients
• OFDMA: Supports simultaneous communication with multiple Wi-Fi 6 clients, increasing efficiency
• Airtime Fairness: Ensures equal bandwidth distribution among devices to optimize network performance
• DFS (Dynamic Frequency Selection): Access to extra bands to reduce congestion
• 8 Streams: Supports multiple devices with more bandwidth

Security Features:

• HomeShield Security: Provides real-time IoT protection, malicious site blocking, intrusion prevention, DDoS attack prevention, and network scanning
• Wi-Fi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) for secure wireless connections
• VPN Support: OpenVPN, PPTP, and L2TP VPN server and client options
• Guest Network: Separate networks for 5 GHz-1, 5 GHz-2, and 2.4 GHz for secure guest access

Hardware Specifications:

• Processor: 1.7 GHz Quad-Core CPU for fast performance
• Ethernet Ports:
  • 1× 2.5 Gbps WAN/LAN Port
  • 1× 1 Gbps WAN/LAN Port
  • 3× 1 Gbps LAN Ports
• USB Ports:
  • 1× USB 3.0 Port
  • 1× USB 2.0 Port for connecting storage devices or printers
• Power: 12 V ⎓ 3.3 A

Software & Management:

• OneMesh™: Create a flexible home Wi-Fi network with TP-Link OneMesh™ products for seamless coverage
• Parental Controls: Includes custom profiles, content filtering, scheduling, activity tracking, and more for safe internet use for children
• Quality of Service (QoS): Prioritize important devices or applications for better performance
• Cloud Services: Auto firmware upgrades, TP-Link ID, and DDNS
• NAT Forwarding: Includes Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server for advanced configuration

Test Data:

• Wi-Fi Transmission Power:
  • FCC:
    • ≤30dBm (5.17GHz–5.25GHz)
    • ≤23dBm (5.25GHz–5.35GHz)
    • ≤23dBm (5.49GHz–5.725GHz)
    • ≤28dBm (5.725GHz–5.825GHz)
    • ≤28dBm (2.4GHz)
  • CE:
    • ≤23dBm EIRP (5.17GHz–5.35GHz)
    • ≤30dBm EIRP (5.47GHz–5.725GHz)
    • ≤20dBm EIRP (2.4GHz)
• Wi-Fi Reception Sensitivity:
  • 2.4 GHz:
    • 11ac VHT20 MCS0: -98dBm, 11ac VHT20 MCS11: -66dBm
    • 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm
  • 5 GHz:
    • 11ac VHT20 MCS0: -94dBm, 11ac VHT20 MCS11: -63dBm
    • 11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm

Physical Specifications:

• Dimensions: 10.9 × 7.2 × 2.3 inches (277.3 × 183.9 × 57.3 mm)
• Package Contents:
  • Archer AX95 Router
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide

System Requirements:

• Compatible browsers: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+
• A cable or DSL modem (if needed) and an internet service subscription are required.

Certifications:

• FCC, CE, RoHS certified
