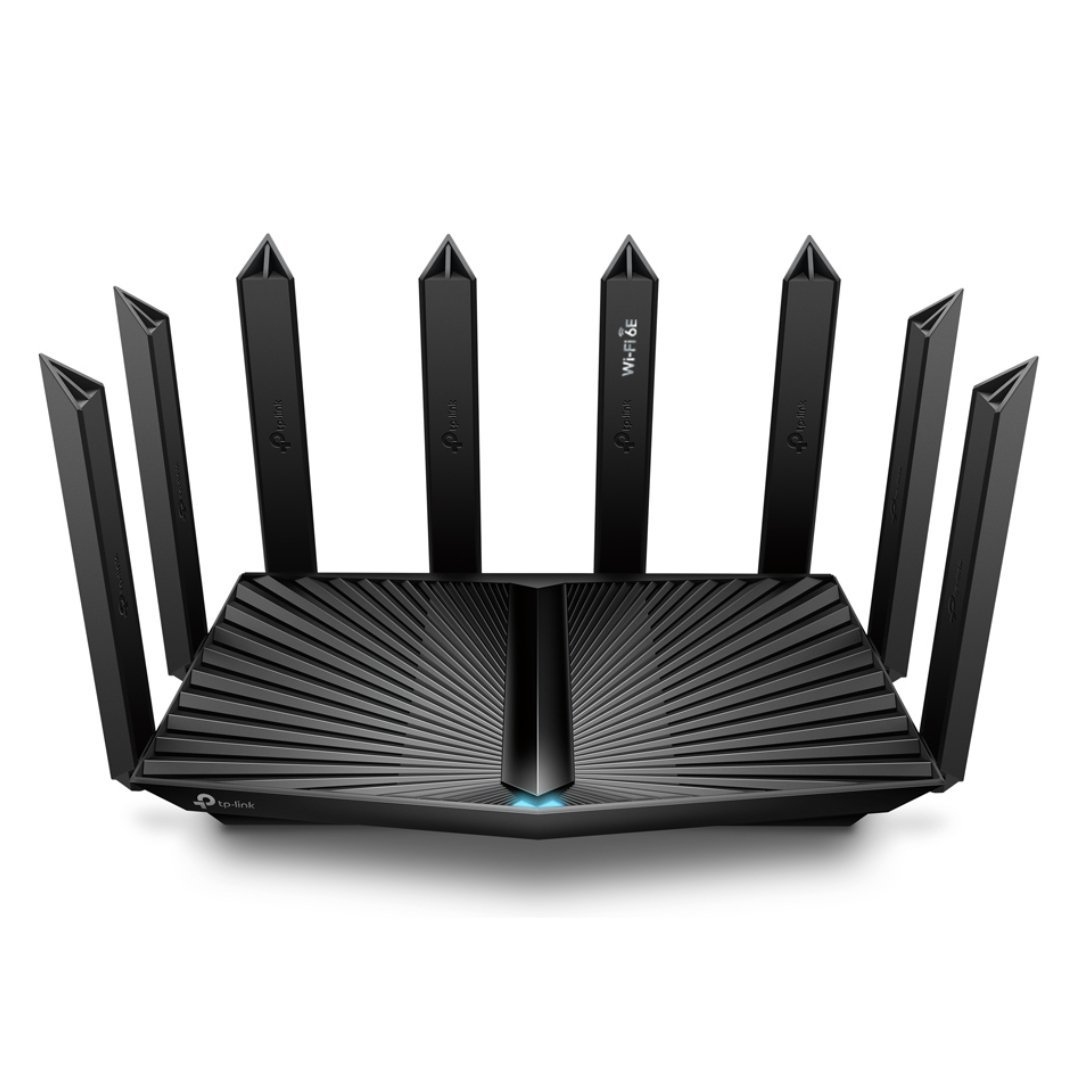

TP-Link Archer AXE95 AXE7800 Tri-Band Wi-Fi 6E Router

Wi-Fi Speeds & Bands:

• 6 GHz Band: 2402 Mbps (802.11ax)
• 5 GHz Band: 4802 Mbps (802.11ax)
• 2.4 GHz Band: 574 Mbps (802.11ax)

Wi-Fi Range & Coverage:

• Coverage Area: Suitable for up to 4-bedroom houses

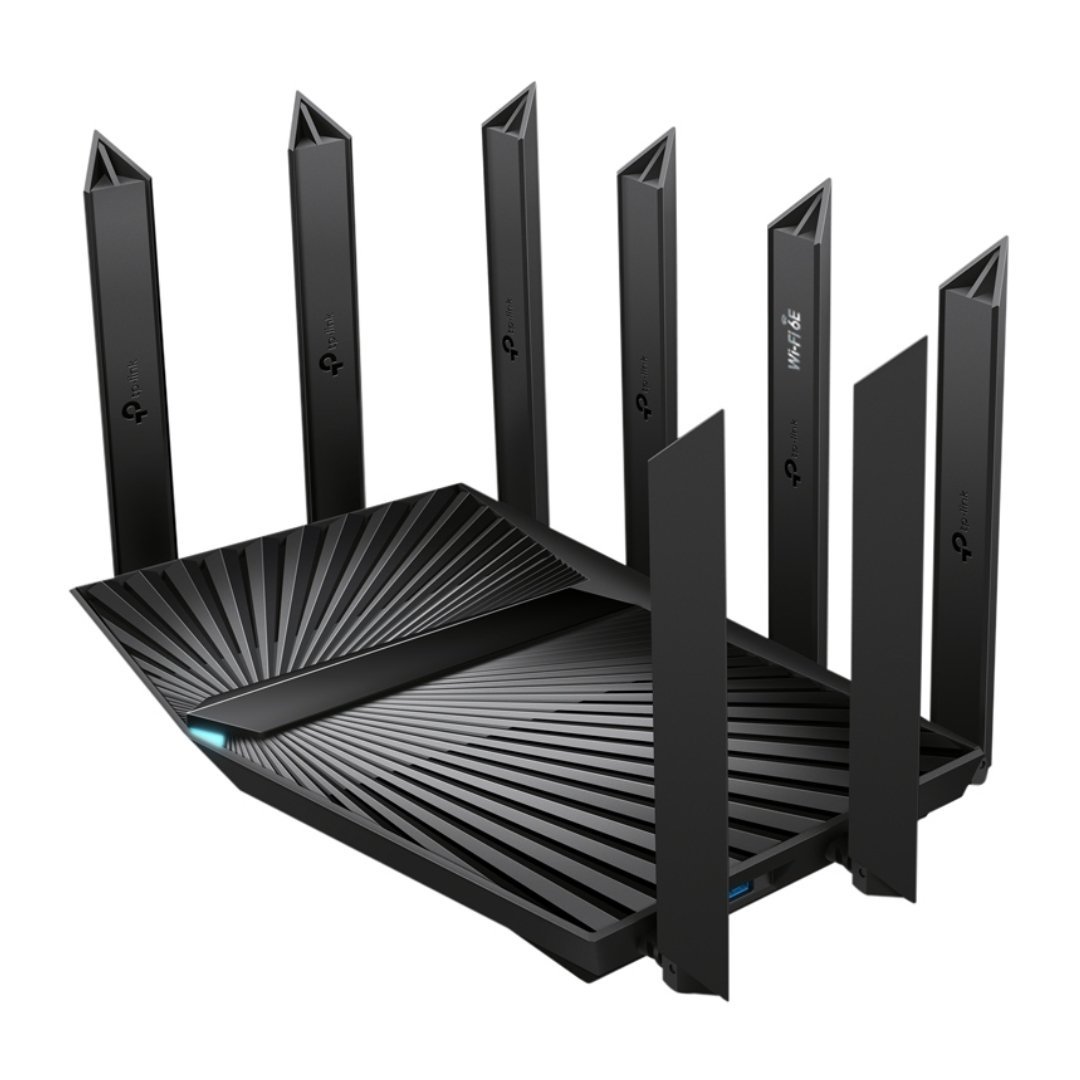

• Antenna Setup: 8× Fixed High-Performance Antennas to boost signal coverage in all directions
• Beamforming: Directs the signal towards clients to improve range and reliability
• High-Power FEM: Enhances transmission power to strengthen coverage

Wi-Fi Capacity & Technology:

• Tri-Band: Allows you to allocate devices across three bands (6 GHz, 5 GHz, and 2.4 GHz) for optimal performance
• 4T4R (Four Transmit, Four Receive): Multiple streams in the same band help to improve fault tolerance during transmission
• 4×4 MU-MIMO: Allows communication with multiple MU-MIMO clients at the same time
• OFDMA: Improves the network’s ability to handle simultaneous communications from multiple devices
• Airtime Fairness: Ensures efficient usage of the available bandwidth by limiting excessive occupation from a single device
• DFS: Allows access to additional channels to reduce congestion in crowded Wi-Fi bands
• 8 Streams: Supports more devices with increased bandwidth availability

Security Features:

• HomeShield Security: Offers real-time IoT protection, malicious site blocking, intrusion prevention, DDoS attack prevention, and network scanning
• Wi-Fi Encryption: Supports WPA3, WPA2, WPA, and WPA/WPA2-Enterprise (802.1x) for secure wireless connections
• VPN Support: Includes OpenVPN, PPTP, and L2TP VPN server and client options
• Guest Networks: 1× 6 GHz, 1× 5 GHz, and 1× 2.4 GHz guest networks for secure browsing by visitors

Hardware Specifications:

• Processor: 1.7 GHz Quad-Core CPU for fast processing and stable performance

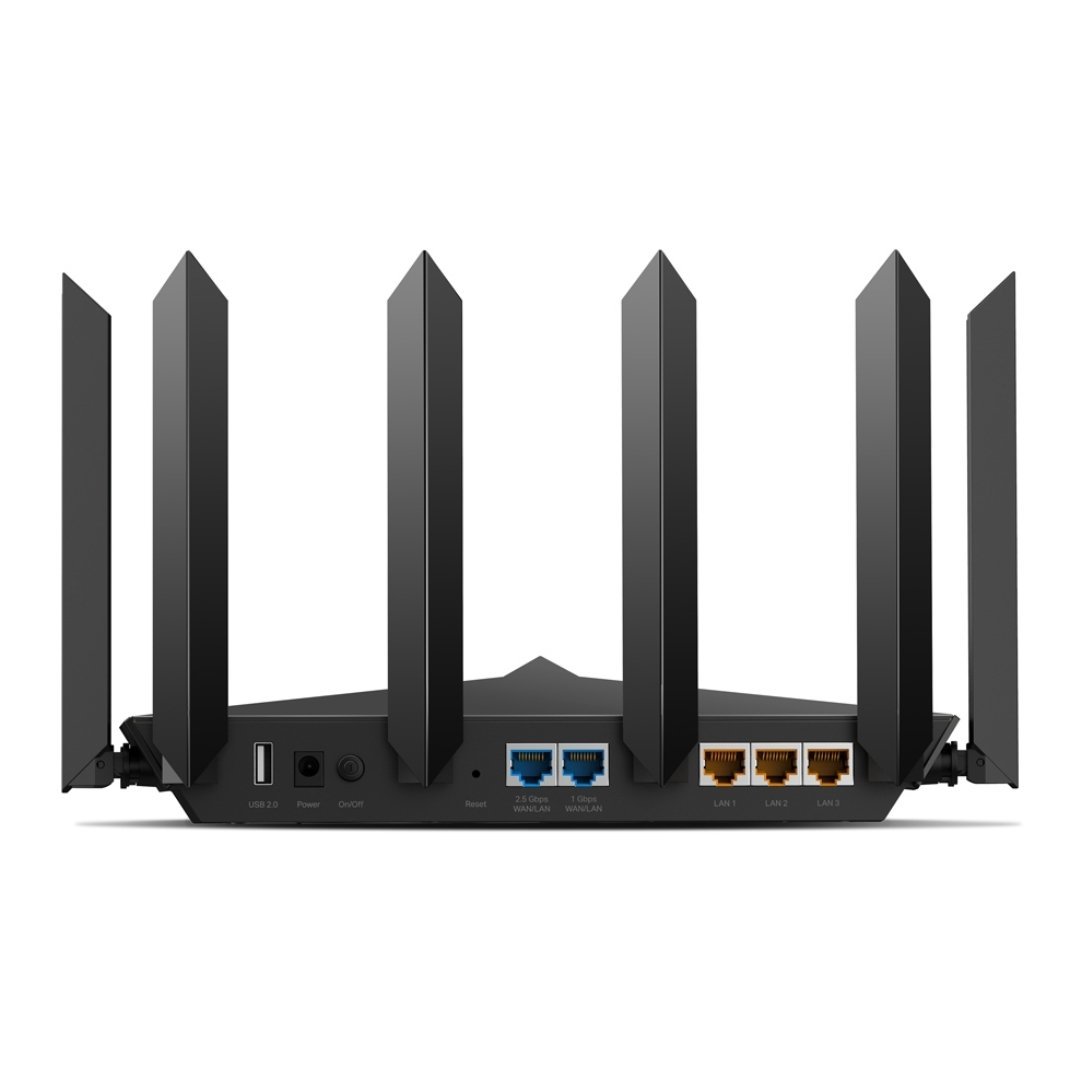

• Ethernet Ports:
  • 1× 2.5 Gbps WAN/LAN Port
  • 1× 1 Gbps WAN/LAN Port
  • 3× 1 Gbps LAN Ports
• USB Ports:
  • 1× USB 3.0 Port
  • 1× USB 2.0 Port for connecting storage devices, printers, or other peripherals
• Power: 12 V ⎓ 2.5 A

Software & Management:

• OneMesh™: Supports TP-Link OneMesh™ to create a seamless and flexible home Wi-Fi network with compatible TP-Link products
• Parental Controls: Custom profiles, content filtering, scheduling, and activity tracking for a safe and controlled browsing experience for children
• Quality of Service (QoS): Allows prioritization of devices and traffic to ensure the best performance for important tasks
• Cloud Services: Auto firmware upgrades, TP-Link ID, and DDNS
• NAT Forwarding: Includes Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server, and more for advanced network configurations

Test Data:

• Wi-Fi Transmission Power:
  • FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz)
  • CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz)
• Reception Sensitivity: Detailed sensitivity for 2.4 GHz, 5 GHz, and 6 GHz across different modulation schemes (HE20, HE40, HE80, HE160)

Physical Specifications:

• Dimensions: 12.2 × 8.1 × 6.8 inches (311 × 207 × 174 mm)
• Package Contents:
  • Archer AXE95 Router
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide

System Requirements:

• Compatible browsers: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+
• A cable or DSL modem (if needed) and an internet service subscription are required.

Certifications:

• FCC and RoHS certified for compliance with regulatory standards.
