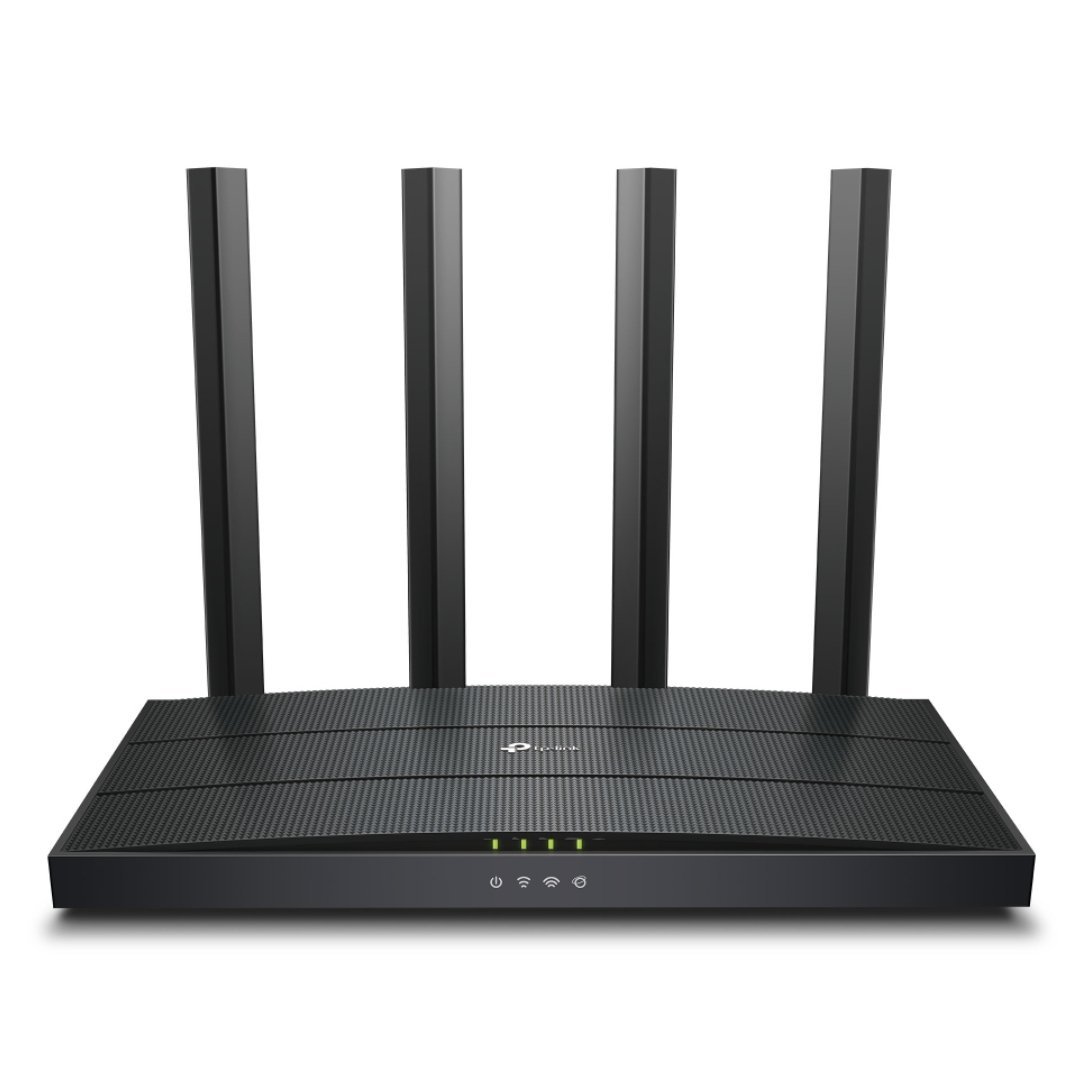

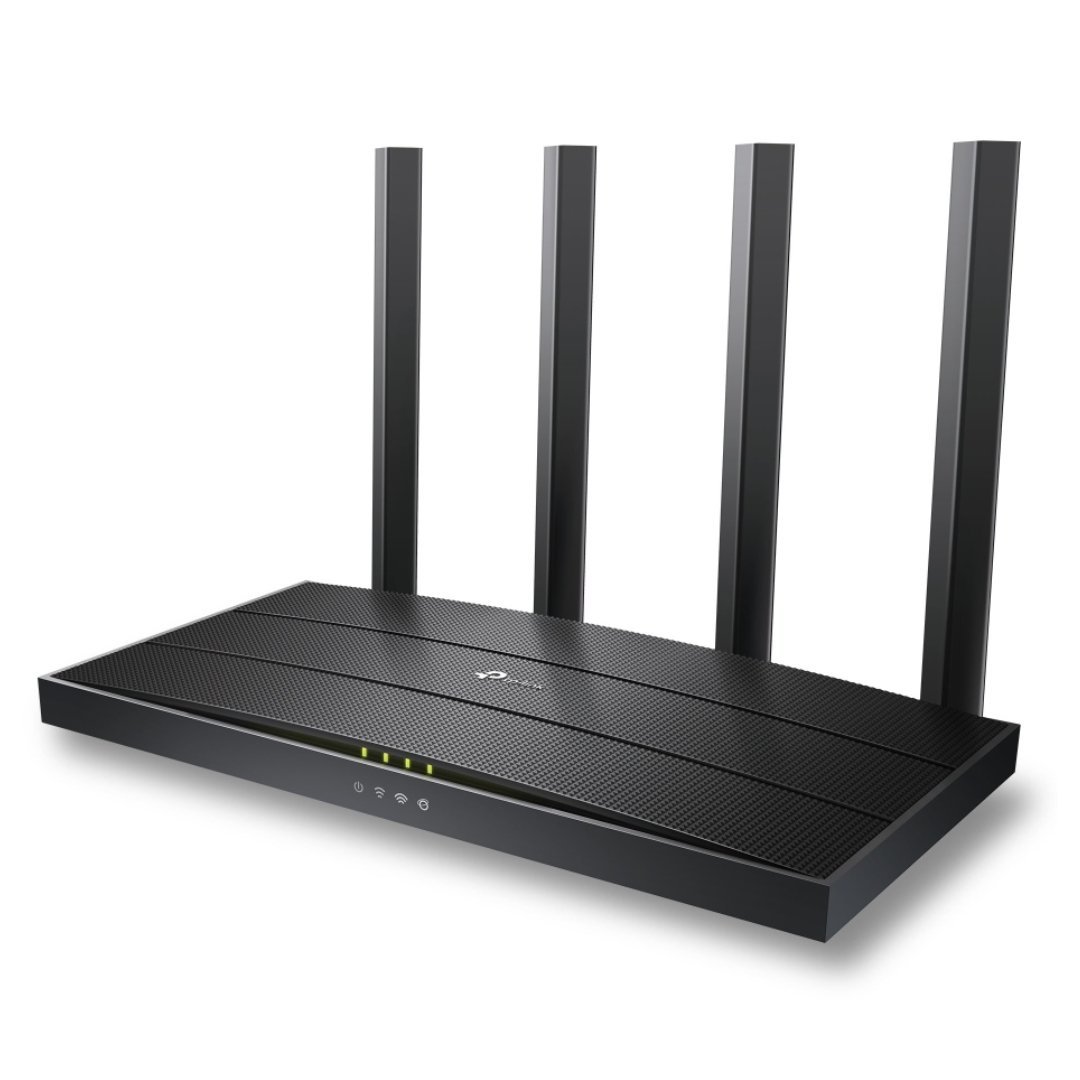

TP-Link Archer AX12 AX1500 Wi-Fi 6 Router

Wi-Fi Standards & Speeds:

• Wi-Fi 6 (802.11ax) for faster speeds and better network efficiency.
  • 5 GHz: Up to 1201 Mbps (802.11ax)
  • 2.4 GHz: Up to 300 Mbps (802.11n)

Wi-Fi Range:

• Ideal for 2-3 bedroom houses.
• 4× Fixed High-Performance Antennas to ensure strong, consistent Wi-Fi coverage across larger areas.
• Beamforming: Directs the signal towards connected devices for better range and performance.

Wi-Fi Capacity & Features:

• Dual-Band: Supports both 2.4 GHz and 5 GHz bands, optimizing device allocation.
• OFDMA: Allows communication with multiple devices simultaneously, enhancing efficiency and reducing latency.
• Airtime Fairness: Improves network efficiency by limiting excessive occupation from specific devices.
• 4 Streams: Maximizes bandwidth by supporting multiple devices with ample throughput.

Security:

• Network Security:
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
• Wi-Fi Encryption:
  • WPA2-PSK, WPA3-Personal, WPA2-Enterprise, and WPA/WPA2-Enterprise support for different levels of security.
• Guest Network:
  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network to isolate guests from the primary network.
• VPN Server: Supports OpenVPN and PPTP for secure remote access.

Hardware Specifications:

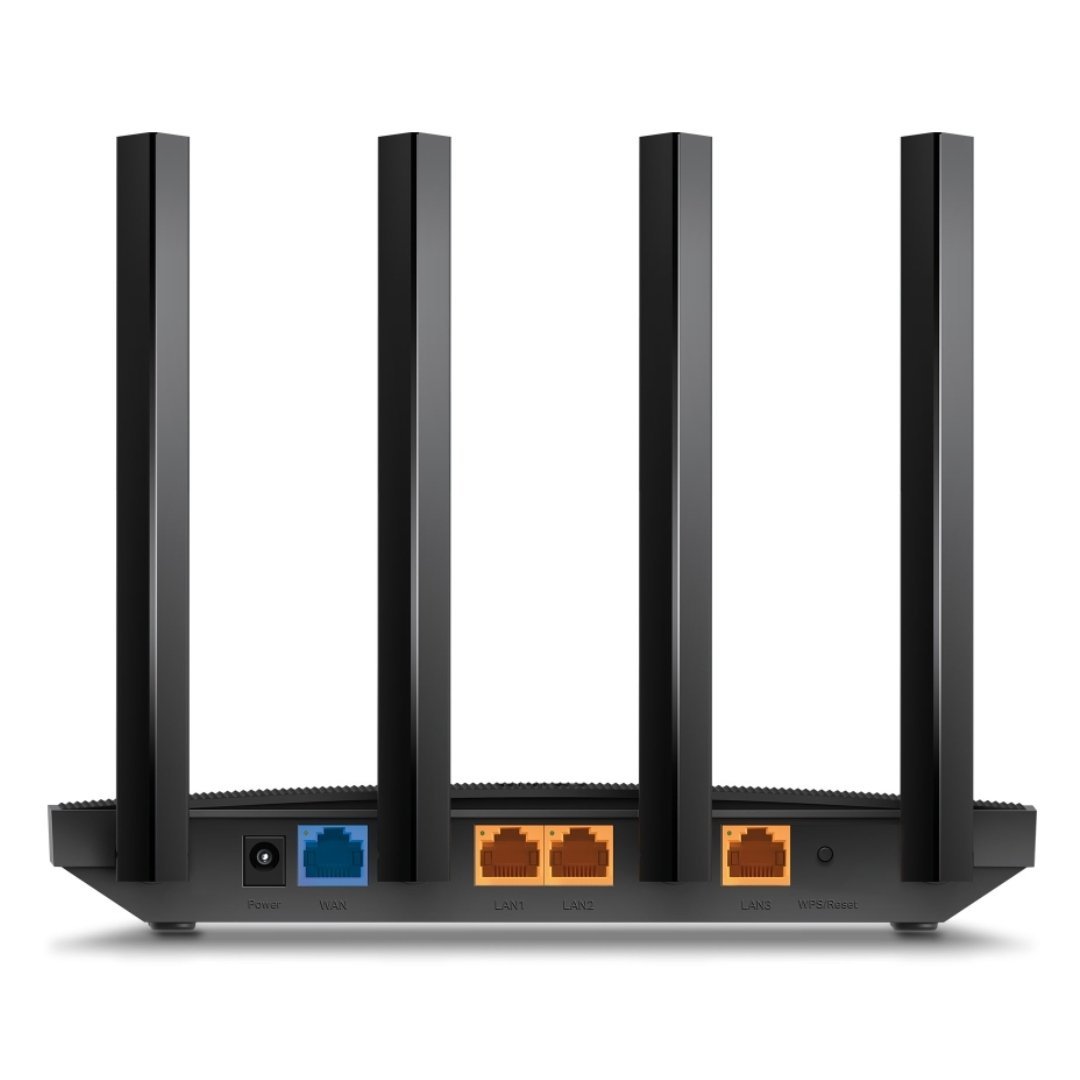

• Ethernet Ports:
  • 1× Gigabit WAN Port for internet connection.
  • 3× Gigabit LAN Ports for fast wired connections.
• Buttons:
  • WPS/Reset Button for easy setup and reset.
• Power Input: 12 V ⎓ 1 A.

Software Features:

• Parental Controls:
  • URL Filtering to block unwanted websites.
  • Time Controls to schedule internet access.
• Quality of Service (QoS): Prioritize bandwidth usage by specific devices.
• Cloud Services:
  • Auto Firmware Upgrade: Keeps the router up to date automatically.
  • DDNS support for remote access via dynamic IP addresses.

Networking Features:

• WAN Types: Supports multiple connection types such as Dynamic IP, Static IP, PPPoE/PPTP (Dual Access), and L2TP (Dual Access).
• NAT Forwarding:
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP for easy setup of services like gaming or cameras.
• IPTV Support:
  • IGMP Proxy
  • IGMP Snooping
  • VLAN Tagging for optimized IPTV setup.

Management:

• Managed via the Tether App or the web interface for easy configuration and control.

System Requirements:

• Compatible with operating systems like Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC OS, NetWare, UNIX, or Linux.
• Browsers: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+.
• Requires a Cable or DSL Modem (if needed) and an Internet service provider subscription.

Certifications:

• FCC, CE, RoHS certified for environmental and safety standards.

Environmental:

• Operating Temperature: 0℃~40℃ (32℉~104℉).
• Storage Temperature: -40℃~60℃ (-40℉~140℉).
• Operating Humidity: 10%~90% non-condensing.
• Storage Humidity: 5%~90% non-condensing.

Wi-Fi Transmission Power & Sensitivity:

• Wi-Fi Transmission Power:
  • CE:
    • <20dBm (2.4 GHz)
    • <23dBm (5.15 GHz–5.25 GHz)
  • FCC:
    • <30dBm (2.4 GHz & 5.15 GHz–5.825 GHz)
• Wi-Fi Reception Sensitivity:
  • 5 GHz:
    • 11ac VHT20 MCS0: -96dBm
    • 11ax HE20 MCS0: -95dBm
    • 11ax HE80 MCS0: -89dBm
  • 2.4 GHz:
    • 11g 6Mbps: -96dBm
    • 11ac VHT20 MCS0: -95dBm
    • 11ax HE20 MCS0: -95dBm

Physical Dimensions:

• Dimensions: 8.5 × 4.6 × 1.3 inches (215 × 117 × 32 mm)
• Package Contents:
  • Archer AX12 Wi-Fi Router
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
