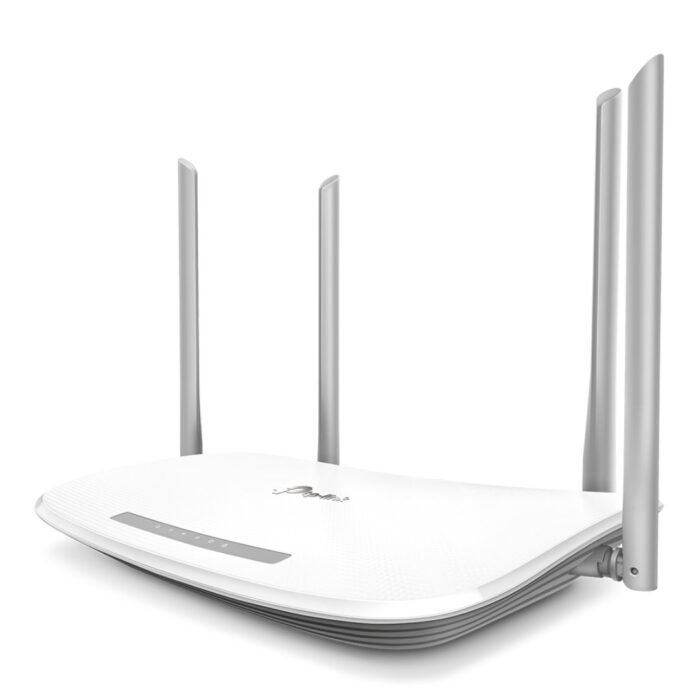

TP-Link EC220-G5 AC1200 Wireless Dual Band Gigabit Router

Physical Specifications:

• Interface:

  • 1× 10/100/1000 Mbps WAN Port: Connect to your internet service provider.
  • 3× 10/100/1000 Mbps LAN Ports: For wired connections to devices like computers, printers, etc.

• External Power Supply:

  • 12V/1.0A: Provides the necessary power for the router’s operation.

• Dimensions:

  • 9.1 × 5.7 × 1.5 in (230.0 × 144.0 × 37.0 mm).

• Antennas:

  • 4 External Antennas: Provides enhanced coverage and signal strength.

Wireless Features:

• Wireless Standards:

  • IEEE 802.11ac/n/a (5 GHz)
  • IEEE 802.11b/g/n (2.4 GHz)
  • IEEE 802.11k/v (for mesh networking)

• Frequency:

  • Operates on 2.4 GHz and 5 GHz bands for optimal performance.

• Signal Rate:

  • 2.4 GHz: Up to 300 Mbps
  • 5 GHz: Up to 867 Mbps

• Transmit Power:

  • CE:
    • <20 dBm (2.4 GHz)
    • <23 dBm (5 GHz)

• Wireless Functions:

  • Enable/Disable Wireless Radio
  • WDS Bridge (for extending network range using compatible routers)
  • WMM (Wi-Fi Multimedia): Prioritizes traffic for smooth streaming and gaming.
  • Wireless Schedule: Set specific times for Wi-Fi to turn on/off.
  • Wireless Statistics: View statistics about your wireless connection.
  • Access Point Mode: Allows the router to function as an access point to extend network coverage.

• Wireless Security:

  • WPA, WPA2, and WPA3 encryption standards for secure wireless connections.

• Mesh Technology:

  • EasyMesh Compatible: Integrates seamlessly with compatible mesh systems for extended and seamless Wi-Fi coverage throughout your home or office.
  • Supports 802.11 k/v for optimized mesh roaming.

Software Features:

• Quality of Service (QoS):

  • WMM (Wi-Fi Multimedia): Optimizes multimedia performance.
  • Bandwidth Control: Allocate bandwidth for specific devices or services.

• WAN Type:

  • Supports Dynamic IP, Static IP, PPPoE, PPTP, and L2TP.

• Management:

  • Local Management: Accessible via WebGUI or Aginet app.
  • Remote Management: Supports protocols like TR-069, TR-181, TR-111, and TR-143 for remote configuration and monitoring.

• DHCP:

  • Server: Assigns IP addresses to connected devices.
  • Client: Allows the router to receive an IP address from an external DHCP server.
  • DHCP Client List: View all devices connected to the network.
  • Address Reservation: Assign fixed IPs to specific devices.

• Port Forwarding:

  • Virtual Server, Port Triggering, DMZ, and UPnP for better control and access for gaming, streaming, and remote applications.

• VPN Pass-Through:

  • Supports PPTP, L2TP, and IPSec VPNs for secure remote connections.

• Access Control:

  • Parental Controls: Restrict internet access based on time or content.
  • Local Management Control: Restrict management access to specific devices.
  • Host List, White List, and Black List: Control which devices can connect to your network.

• Firewall Security:

  • DoS (Denial of Service) protection.
  • SPI Firewall: Monitors and filters incoming and outgoing traffic for security.
  • IP Address Filter: Blocks access from specific IPs.
  • IP and MAC Address Binding: Links devices to specific IP and MAC addresses for enhanced security.

• Protocols:

  • Supports both IPv4 and IPv6 for compatibility with modern networks.

Other Features:

• Package Contents:

  • AC1200 Wireless Dual Band Gigabit Router EC220-G5
  • Power Supply Unit
  • RJ45 Ethernet Cable
  • Quick Installation Guide

• System Requirements:

  • Microsoft Windows: 98SE, NT, 2000, XP, Vista™, 7, 8, 8.1, 10
  • MAC OS, NetWare, UNIX, Linux
  • Compatible with Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, and Safari 4.0+.

• Internet Connection:

  • A cable or DSL modem may be needed, along with an ISP subscription.

• Certifications:

  • CE, RoHS certified for environmental and safety compliance.

• Environmental Conditions:

  • Operating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)
  • Storage Temperature: -40℃ ~ 60℃ (-40℉ ~ 140℉)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing
